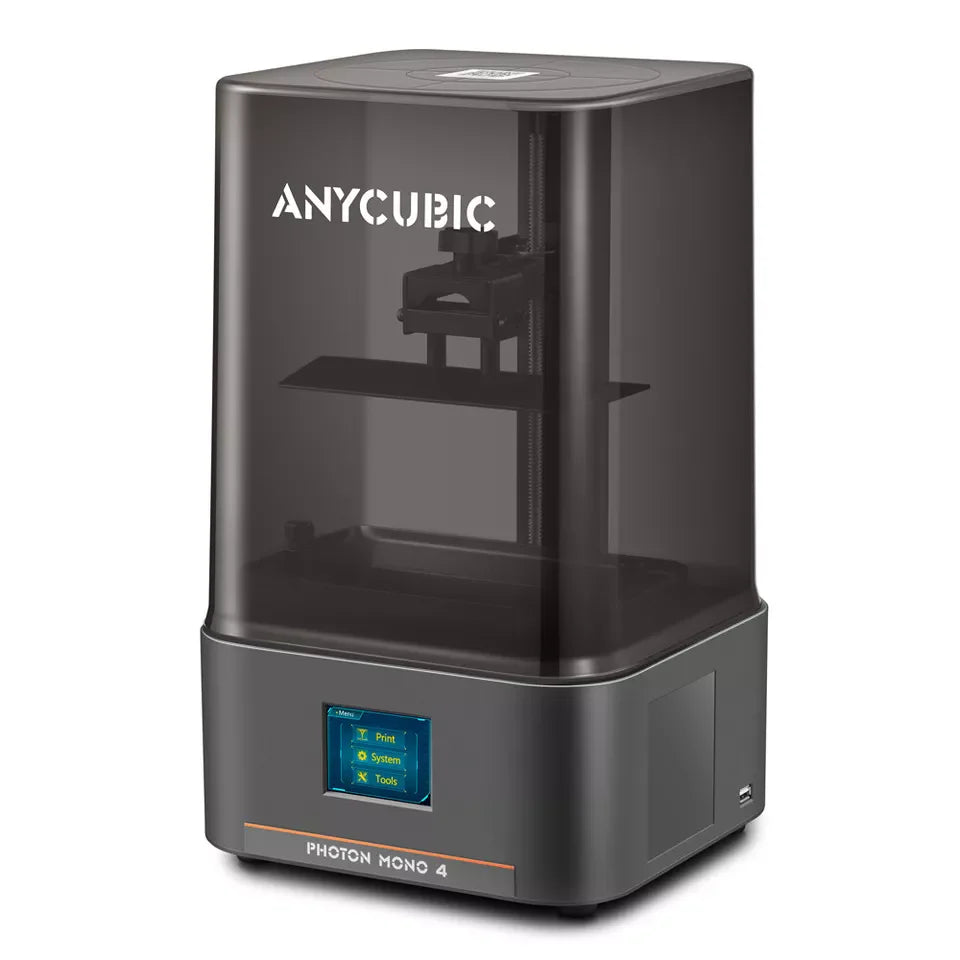

Anycubic Photon Mono 4
The Anycubic Photon Mono 4 is a compact MSLA printer built around a 7-inch 10K monochrome LCD. Its 17 μm XY pixel size and 153.4 × 87 × 165 mm build volume make it well suited to miniatures, dental models, prototypes and other highly detailed work.
Already own this printer? Use the specifications and tested resin settings below, then explore Monocure3D MSLA resins for your next print.
The Anycubic Photon Mono 4 combines a compact footprint with a 7-inch 10K monochrome LCD and ultra-fine 17 μm XY resolution. Anycubic’s parallel matrix light system supports consistent exposure across the build area, helping produce clean edges and fine surface detail. It uses 405 nm UV-curing resin and is compatible with Monocure3D MSLA resins. Use the SML resin settings as a starting point and confirm exposure with a calibration model before production printing.
| Operation | 2.8-inch TFT touch-control |
|---|---|
| Printing Speed | Up to 50 mm/hr |
| Software | Anycubic Photon Workshop |
| Rated Power | 48 W |
| Connectivity | USB Type-A 2.0 |
| Printer Size | 230 × 235 × 391 mm |
| Technology | 7-inch 10K monochrome LCD (MSLA) |
| Build Volume | 153.4 × 87 × 165 mm |
| Light Source | Parallel matrix LED array |
| Material | 405 nm UV resin; Monocure3D MSLA resins recommended |
| XY Resolution | 9024 × 5120; 17 μm |
| Net Weight | 4 kg |
| Z-Axis Resolution | 10 μm |
- 7-inch 10K monochrome LCD with 17 μm XY resolution
- 153.4 × 87 × 165 mm build volume
- Parallel matrix LED light source for consistent curing
- Compact desktop format with USB connectivity
- Compatible with Monocure3D 405 nm MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
