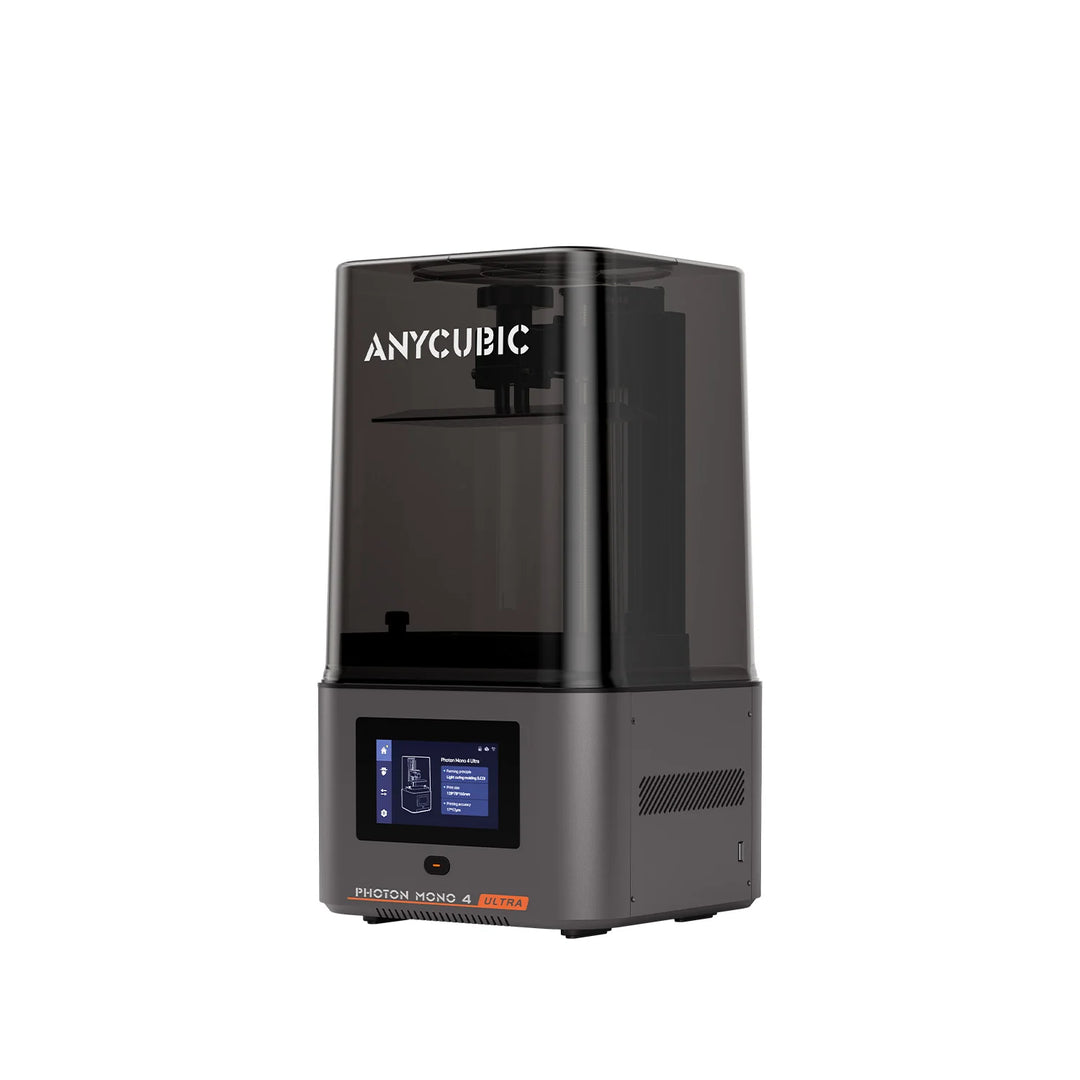

Anycubic Photon Mono 4 Ultra
The Anycubic Photon Mono 4 Ultra adds faster printing, Wi-Fi and upgraded COB optics to the precise 7-inch 10K platform. Its 17 × 17 µm pixels reproduce crisp edges and fine surface detail for miniatures, jewellery, dental work and product development.
Use Monocure3D MSLA resins for a broad Australian material range and application-focused support.
Contact Monocure3D for current availability, lead time and a tailored resin recommendation.
The Photon Mono 4 Ultra combines compact proportions with fine 10K resolution and a more capable workflow. Its COB plus Fresnel LightTurbo 4.0 system improves light uniformity, while ACF film and faster motion support higher throughput. Wi-Fi connectivity and power-loss resume add convenience. Monocure3D MSLA resins cover modelling, engineering, dental, castable and specialist applications.
| Operation | 2.8-inch touchscreen |
|---|---|
| Software | Anycubic Photon Workshop; compatible with CHITUBOX and Lychee Slicer |
| Connectivity | USB and Wi-Fi |
| Technology | 7-inch 10K monochrome LCD (MSLA) |
| Light Source | COB + Fresnel lens LightTurbo 4.0 |
| XY Resolution | 9024 × 5120 pixels (17 × 17 µm) |
| Layer Height | 0.02–0.15 mm |
| Printing Speed | Up to 80 mm/hr standard; 120 mm/hr with high-speed resin |
| Build Volume | 153.4 × 87 × 165 mm (2.2 L) |
| Release Film | ACF |
| Net Weight | Approximately 4.8 kg |
| Rated Power | 66 W |
| Recommended Material | Monocure3D MSLA resins |
- 7-inch 10K monochrome LCD
- 17 × 17 µm XY pixel size
- COB plus Fresnel LightTurbo 4.0 optics
- Wi-Fi connectivity and up to 120 mm/hr with high-speed resin
- Recommended for Monocure3D MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
