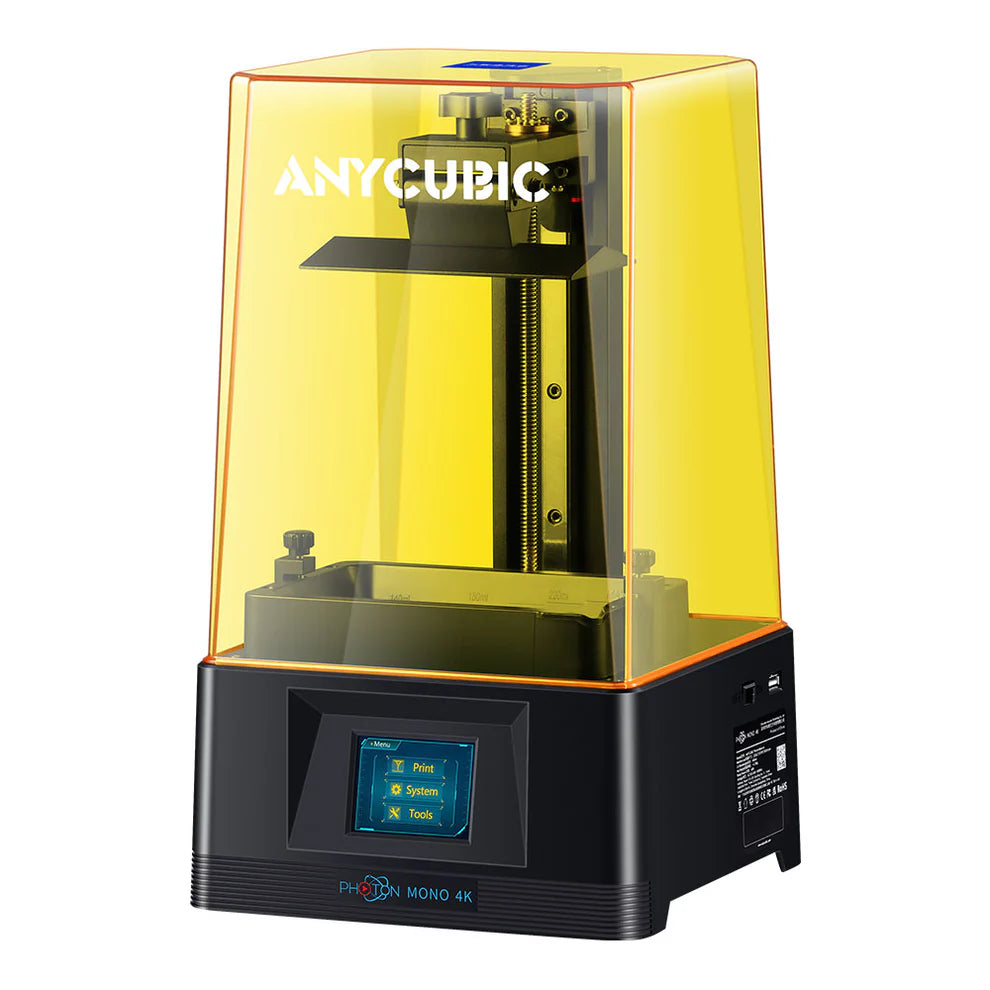

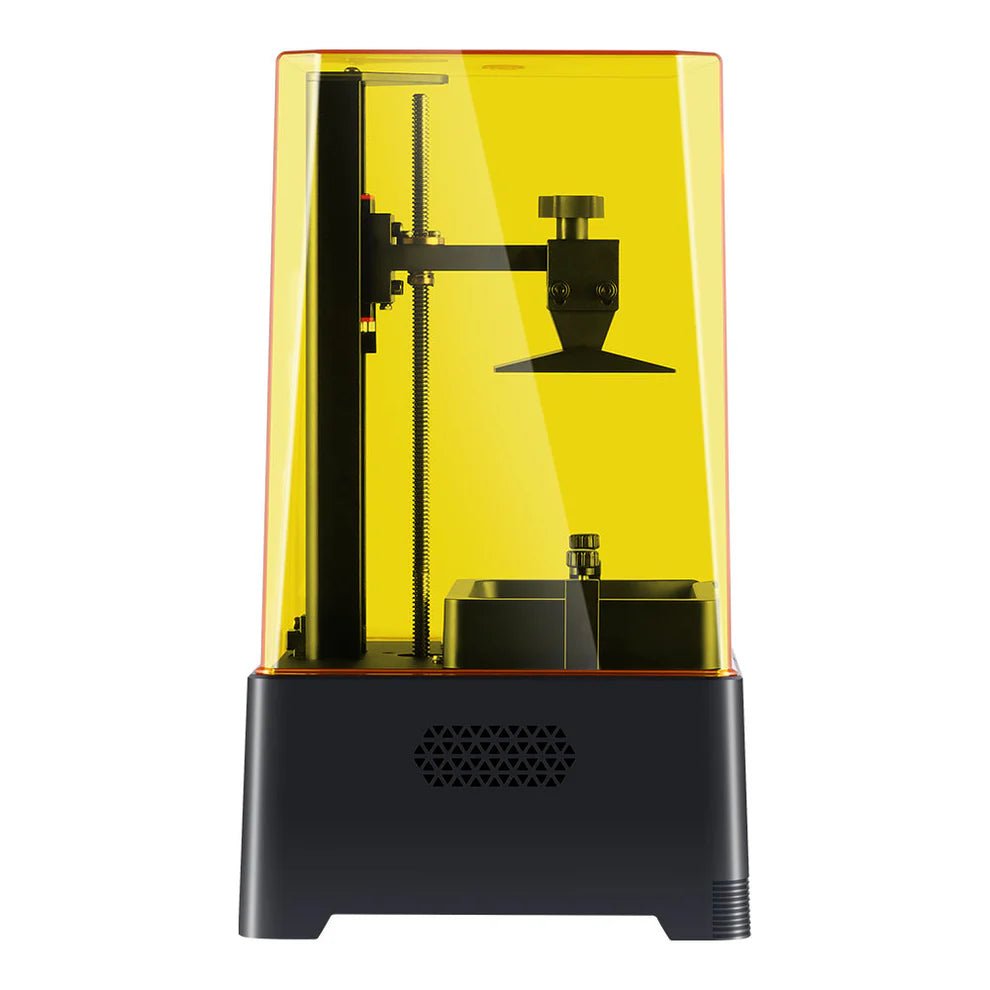

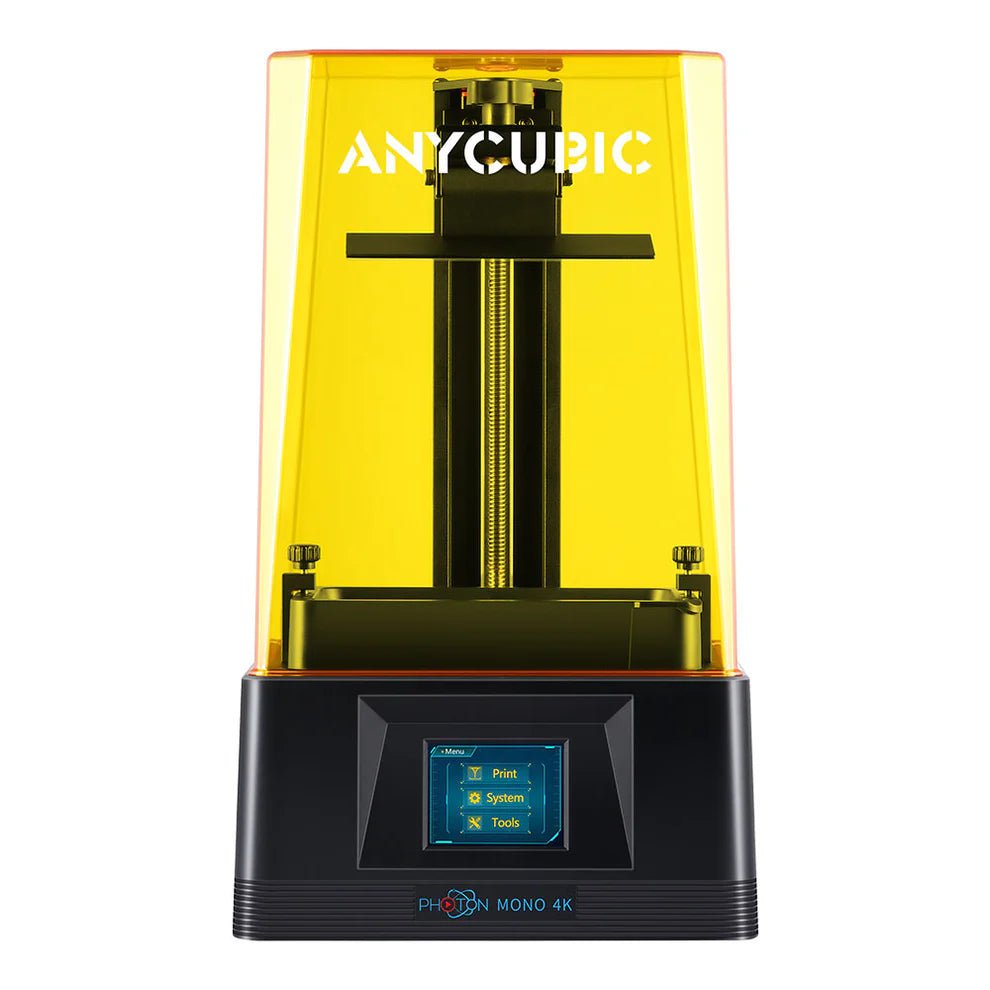

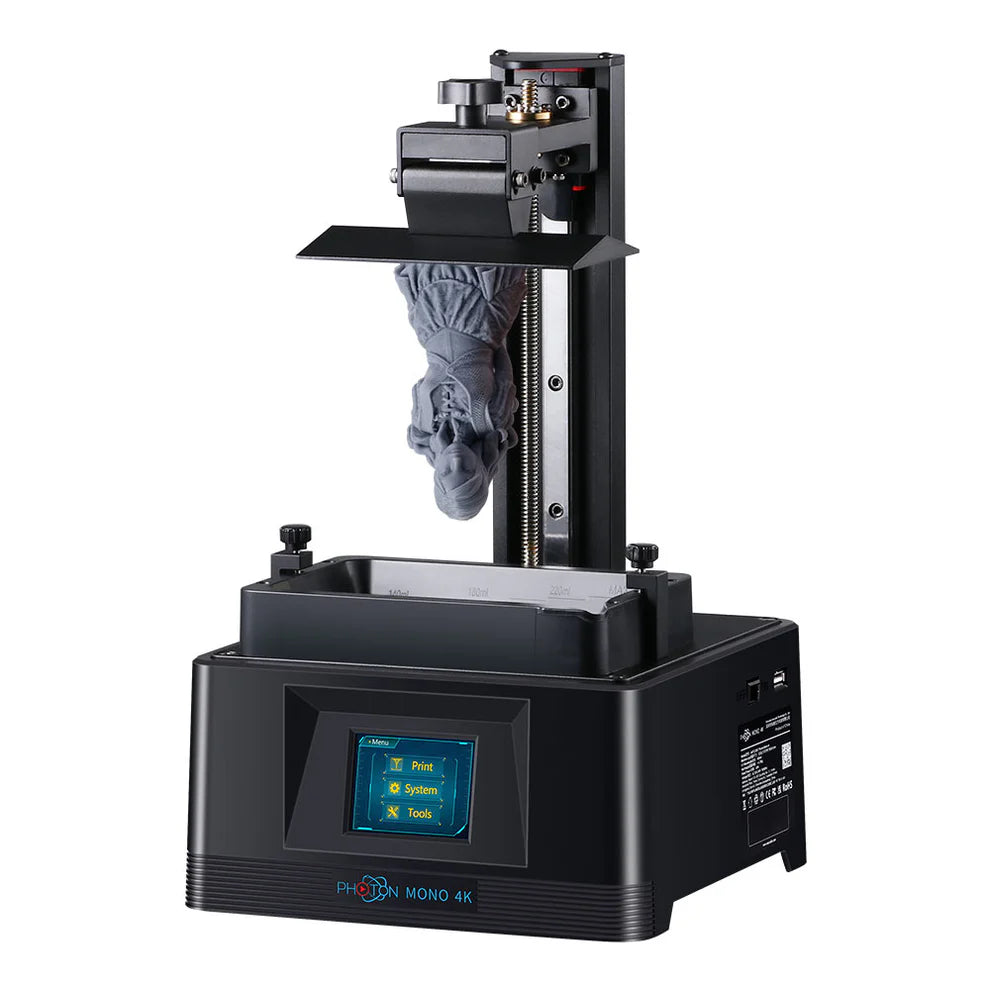

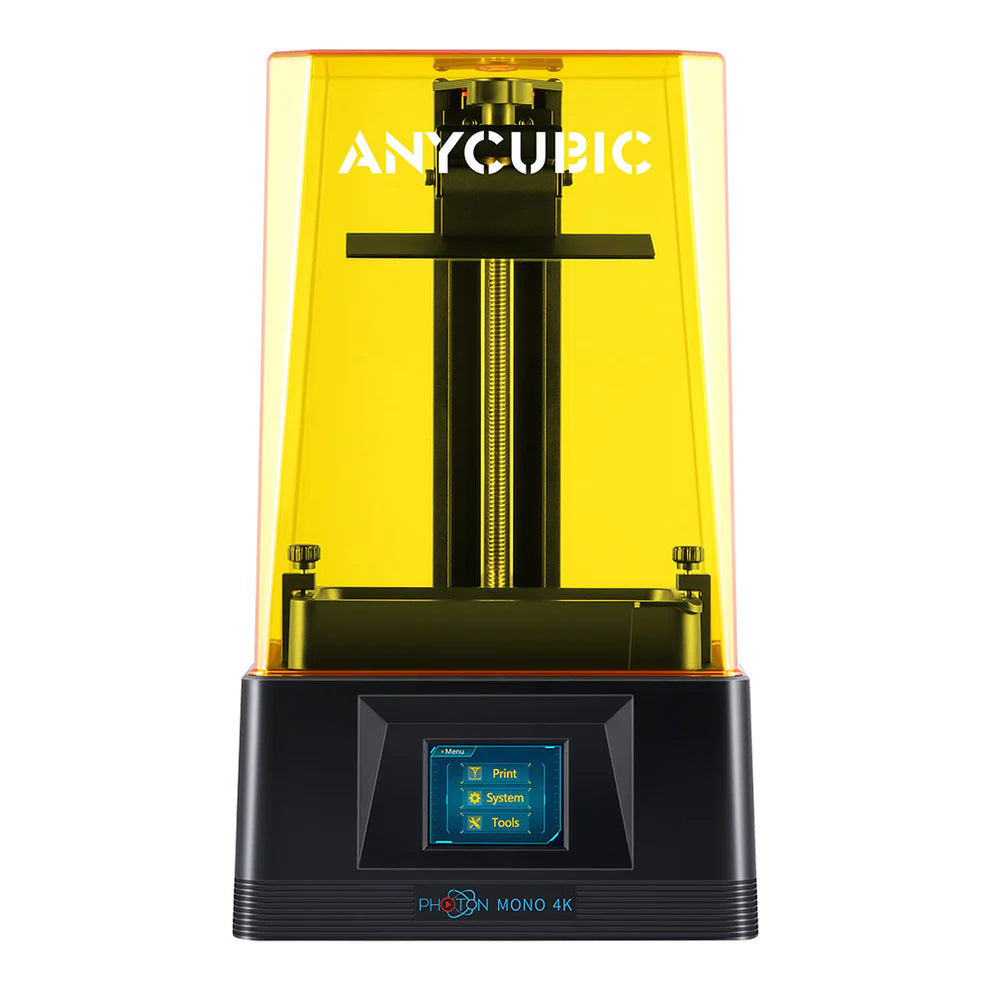

Anycubic Photon Mono 4K
The Anycubic Photon Mono 4K is a compact MSLA printer with a 6.23-inch 4K monochrome LCD, 35 μm XY resolution and a 132 × 80 × 165 mm build volume.
Already own this printer? Use the specifications and tested resin settings below, then explore Monocure3D MSLA resins for your next print.
The Anycubic Photon Mono 4K delivers fine detail from a compact platform. Its 3840 × 2400 monochrome LCD provides 35 μm XY resolution and fast layer curing, while the parallel LED matrix supports consistent exposure across the 132 × 80 mm build area. It is suited to miniatures, jewellery patterns, dental models and detailed prototypes. The printer accepts 405 nm UV-curing resin and is compatible with Monocure3D MSLA resins. Use the SML settings as a starting profile and validate normal exposure with a calibration print.
| Operation | 2.8-inch TFT touch-control |
|---|---|
| Contrast Ratio | 400:1 |
| Software | Anycubic Photon Workshop |
| Printing Speed | Up to 50 mm/hr |
| Connectivity | USB Type-A 2.0 |
| Rated Power | 45 W |
| Technology | 6.23-inch 4K monochrome LCD (MSLA) |
| Printer Size | 227 × 222 × 383 mm |
| Light Source | Parallel matrix LED array (15 LEDs) |
| Build Volume | 132 × 80 × 165 mm |
| XY Resolution | 3840 × 2400; 35 μm |
| Material | 405 nm UV resin; Monocure3D MSLA resins recommended |
| Z-Axis Resolution | 10 μm |
| Net Weight | 4.3 kg |
- 6.23-inch 4K monochrome LCD with 35 μm XY resolution
- 132 × 80 × 165 mm build volume
- Parallel 15-LED matrix light source
- Fast monochrome-screen layer curing
- Compatible with Monocure3D 405 nm MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
