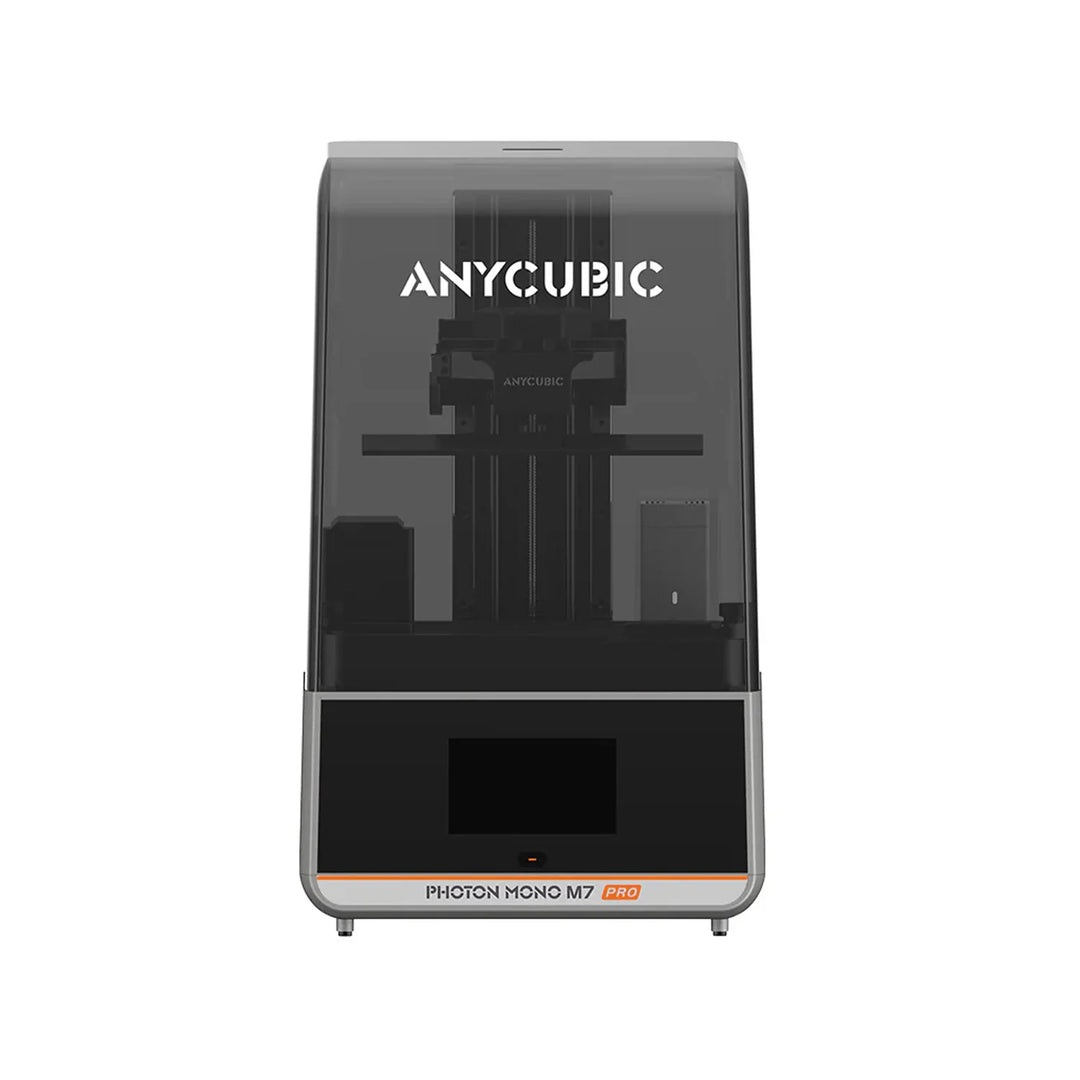

Anycubic Photon Mono M7 Pro
The Anycubic Photon Mono M7 Pro is a fast 14K production-ready resin printer with heated resin management, automatic refill and intelligent monitoring. Its 223 × 126 × 230 mm volume and fine 16.8 × 24.8 µm pixels balance capacity with exceptional detail.
Pair it with Monocure3D MSLA resins for professional modelling, engineering, dental and castable workflows.
Contact Monocure3D for current availability, lead time and a tailored resin recommendation.
The Photon Mono M7 Pro is designed for users who want high detail and high throughput in one machine. Its 10.1-inch 14K screen provides 16.8 × 24.8 µm pixels, while a dynamic temperature-controlled vat, automatic resin refill and recycling, and intelligent detection systems streamline demanding jobs. Monocure3D can match the printer with the right MSLA resin and starting profile.
| Operation | 5-inch capacitive touchscreen |
|---|---|
| Software | Anycubic Photon Workshop; compatible with CHITUBOX |
| Connectivity | USB and Wi-Fi |
| Technology | 10.1-inch 14K monochrome LCD (MSLA) |
| Light Source | COB + Fresnel LightTurbo 3.0 |
| XY Resolution | 13312 × 5120 pixels (16.8 × 24.8 µm) |
| Layer Height | 0.01–0.15 mm |
| Printing Speed | Up to 130 mm/hr standard; 170 mm/hr with high-speed resin |
| Build Volume | 223 × 126 × 230 mm (6.5 L) |
| Printer Size | 310 × 315 × 520 mm |
| Net Weight | 12.8 kg |
| Resin Management | Heated vat with automatic refill and recycling |
| Recommended Material | Monocure3D MSLA resins |
- 10.1-inch 14K monochrome LCD
- 223 × 126 × 230 mm build volume
- Dynamic resin heating and automatic refill
- Up to 170 mm/hr with high-speed resin
- Recommended for Monocure3D MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
