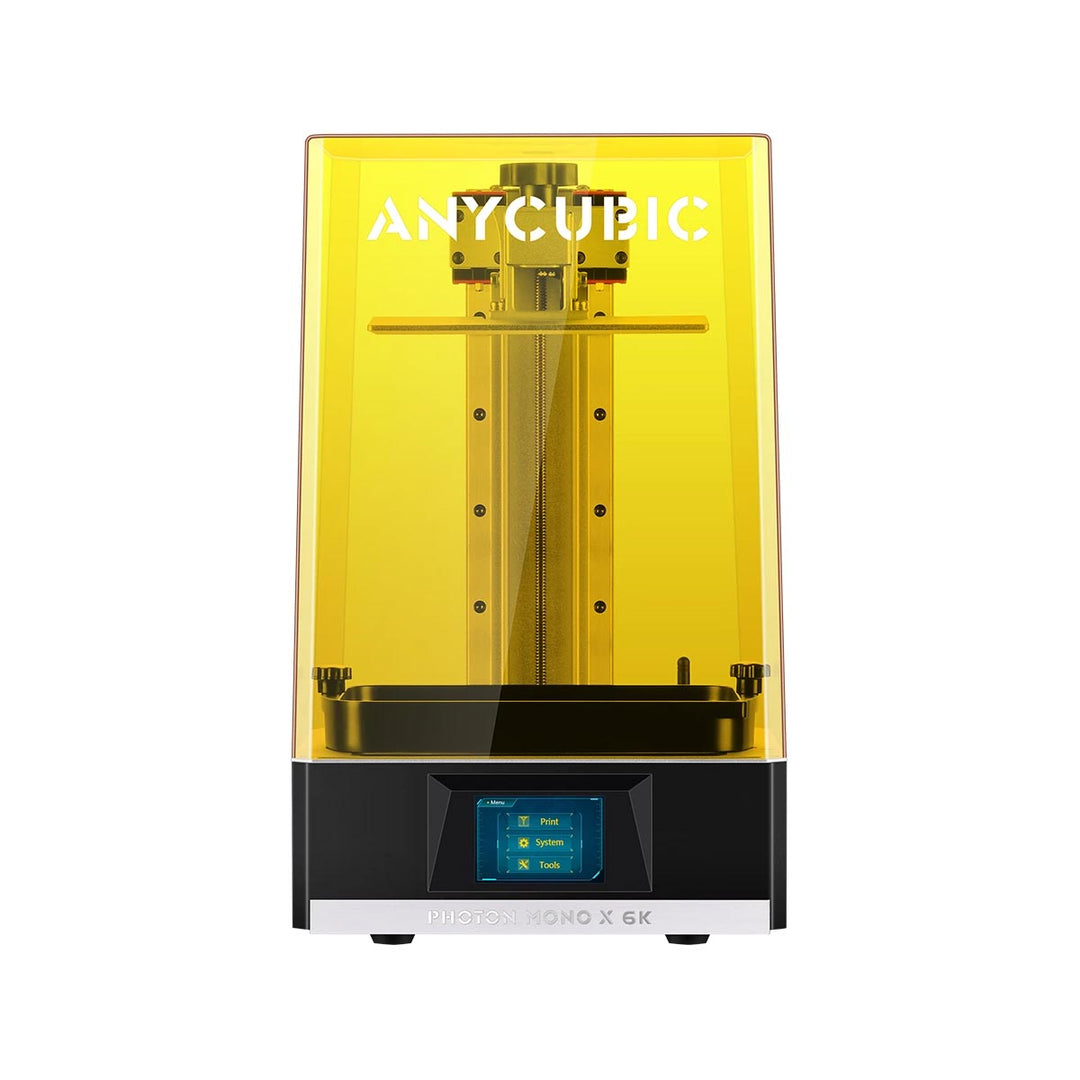

Anycubic Photon Mono X 6K
The Anycubic Photon Mono X 6K features a 9.25-inch 6K monochrome LCD, approximately 34 µm XY resolution and a 197 × 122 × 245 mm build volume. Its parallel matrix light source provides a useful balance of detail, capacity and printing speed.
The Anycubic Photon Mono X 6K upgrades the Mono X platform with a 5760 × 3600-pixel monochrome LCD and approximately 34 µm XY resolution. Its 197 × 122 × 245 mm build volume suits larger models and batch production, while the parallel matrix LED light source supports consistent exposure. Pair it with Monocure3D MSLA resins and use the linked XL values as calibrated starting settings.
| Operation | 3.5-inch touchscreen |
|---|---|
| Software | Anycubic Photon Workshop; compatible with CHITUBOX and Lychee Slicer |
| Connectivity | USB-A and LAN |
| Technology | 9.25-inch 6K monochrome LCD (MSLA) |
| Light Source | 405 nm parallel matrix LED light source |
| XY Resolution | 5760 × 3600 pixels (approximately 34 µm) |
| Layer Height | 0.01–0.15 mm |
| Printing Speed | Up to 80 mm/hr |
| Build Volume | 197 × 122 × 245 mm |
| Printer Size | 270 × 290 × 475 mm |
| Net Weight | 11 kg |
| Rated Power | 120 W |
| Recommended Material | Monocure3D MSLA resins |
- 9.25-inch 6K monochrome LCD
- 5760 × 3600 resolution with approximately 34 µm XY pixel size
- 197 × 122 × 245 mm build volume
- Maximum stated printing speed of 80 mm/hr
- Compatible with Monocure3D MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
