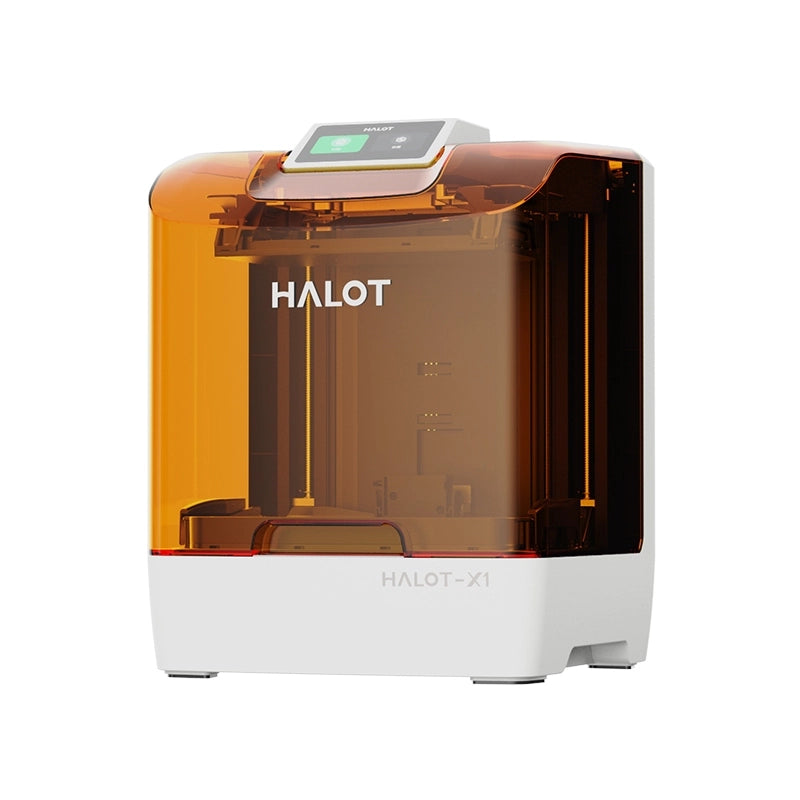

Creality HALOT-X1 16K
The Creality HALOT-X1 16K combines exceptional 14 × 19 µm detail with a fast, stable top-down motion system and intelligent 92-zone exposure. Its 211.68 × 118.37 × 200 mm build volume suits detailed models, prototypes and small production runs.
Pair this printer with Monocure3D MSLA resins for professional material options, practical starting settings and Australian technical support.
Contact Monocure3D for current availability, lead time and a tailored resin recommendation.
The Creality HALOT-X1 16K is a high-detail MSLA resin printer built for users who want fine surface quality, reliable repeatability and faster production. A 10.1-inch 16K monochrome LCD delivers 15120 × 6230 resolution with extremely fine 14 × 19 µm pixels. Its innovative top-down structure moves the resin vat and optical module while the build platform remains fixed, helping improve stability and reduce visible layer lines. A maximum print speed of 170 mm/hr, intelligent 92-zone exposure, a quick-release vat and a generous 211.68 × 118.37 × 200 mm build volume make it a capable choice for miniatures, dental models, jewellery, prototypes and batch work. Pair it with Monocure3D MSLA resins for professional material options, local support and practical calibration guidance.
| Operation | 3.98-inch capacitive touchscreen |
|---|---|
| Software | HALOT BOX and CHITUBOX |
| Connectivity | USB and Wi-Fi |
| Technology | 10.1-inch 16K monochrome LCD (MSLA) |
| Light Source | Honeycomb matrix light source with 92-zone intelligent exposure |
| XY Resolution | 15120 × 6230 pixels (14 × 19 µm) |
| Layer Height | 0.01–0.20 mm |
| Printing Speed | Up to 170 mm/hr at 0.20 mm layer height |
| Build Volume | 211.68 × 118.37 × 200 mm |
| Printer Size | 344 × 331 × 434 mm |
| Net Weight | 12.93 kg |
| Rated Power | 350 W |
| Recommended Material | Monocure3D 405 nm MSLA resins |
- 10.1-inch 16K monochrome LCD with ultra-fine 14 × 19 µm pixels
- Innovative top-down motion system with a fixed build platform
- 92-zone intelligent exposure for accuracy and efficient light use
- Maximum print speed up to 170 mm/hr
- 211.68 × 118.37 × 200 mm build volume
- Compatible with Monocure3D 405 nm MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
