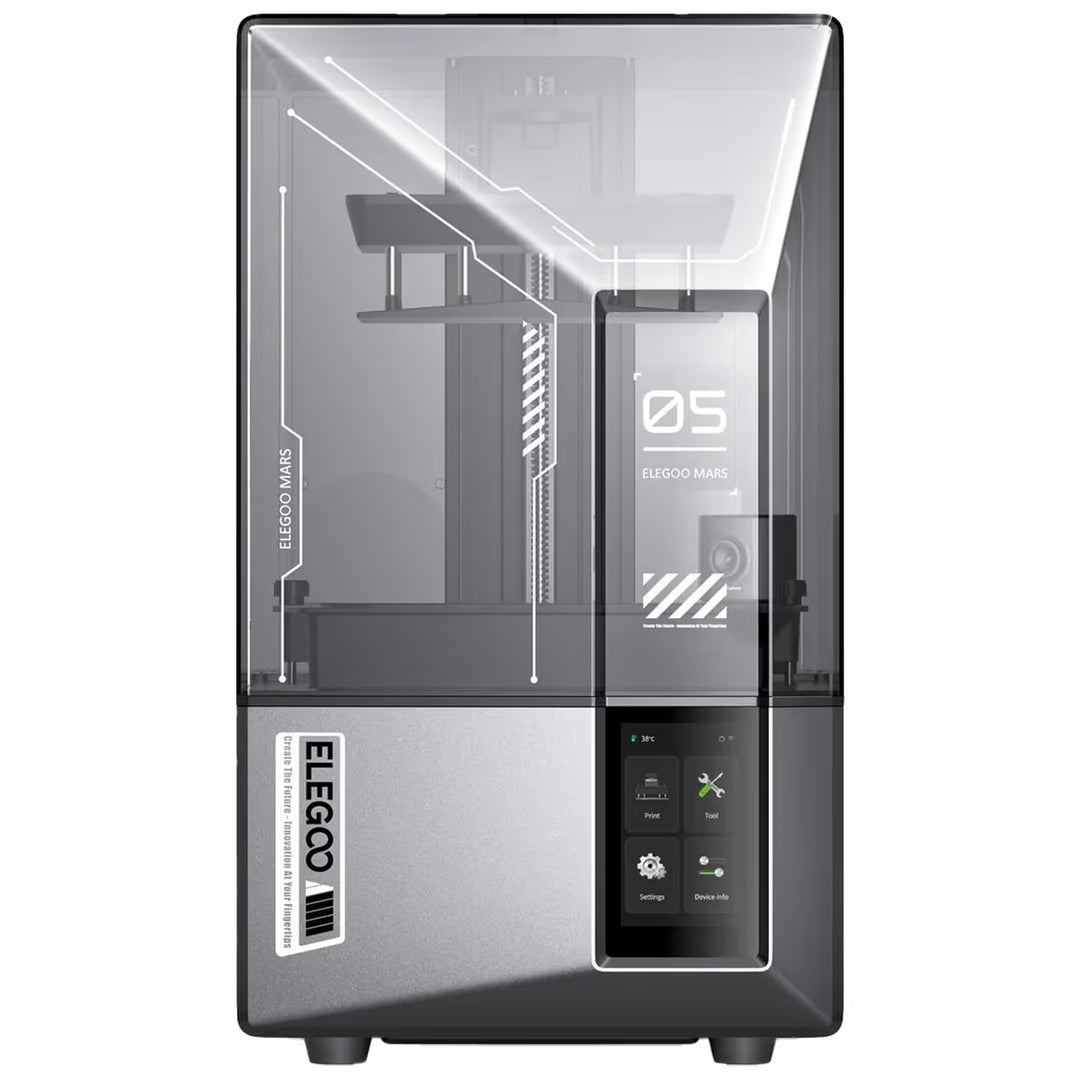

Elegoo Mars 5 Ultra
The Elegoo Mars 5 Ultra is a compact high-speed 9K printer with automatic levelling, tilt release and an AI camera. Its 18 µm XY resolution is ideal for highly detailed miniatures, jewellery, dental models and precision prototypes.
Pair it with Monocure3D MSLA resins for quality materials and Australian resin expertise.
Contact Monocure3D for current availability, lead time and a tailored resin recommendation.
The Elegoo Mars 5 Ultra makes detailed resin printing approachable without sacrificing useful automation. Its 7-inch 9K monochrome LCD delivers 18 µm XY resolution, while tilt release enables rapid printing up to 150 mm/hr. Automatic levelling, an AI camera and Wi-Fi transfer simplify everyday use. Monocure3D MSLA resins provide options for creative, engineering, dental and castable work.
| Operation | 4-inch capacitive touchscreen |
|---|---|
| Software | CHITUBOX |
| Connectivity | USB and Wi-Fi |
| Technology | 7-inch 9K monochrome LCD (MSLA) |
| Light Source | 405 nm COB light source |
| XY Resolution | 8520 × 4320 pixels (18 µm) |
| Layer Height | 0.01–0.20 mm |
| Printing Speed | Up to 150 mm/hr |
| Build Volume | 153.36 × 77.76 × 165 mm (2.0 L) |
| Printer Size | 260 × 268 × 451.5 mm |
| Net Weight | 8.8 kg |
| Rated Power | 72 W |
| Recommended Material | Monocure3D MSLA resins |
- 7-inch 9K monochrome LCD
- 18 µm XY resolution
- Automatic levelling and tilt release
- AI camera, Wi-Fi and up to 150 mm/hr speed
- Recommended for Monocure3D MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
