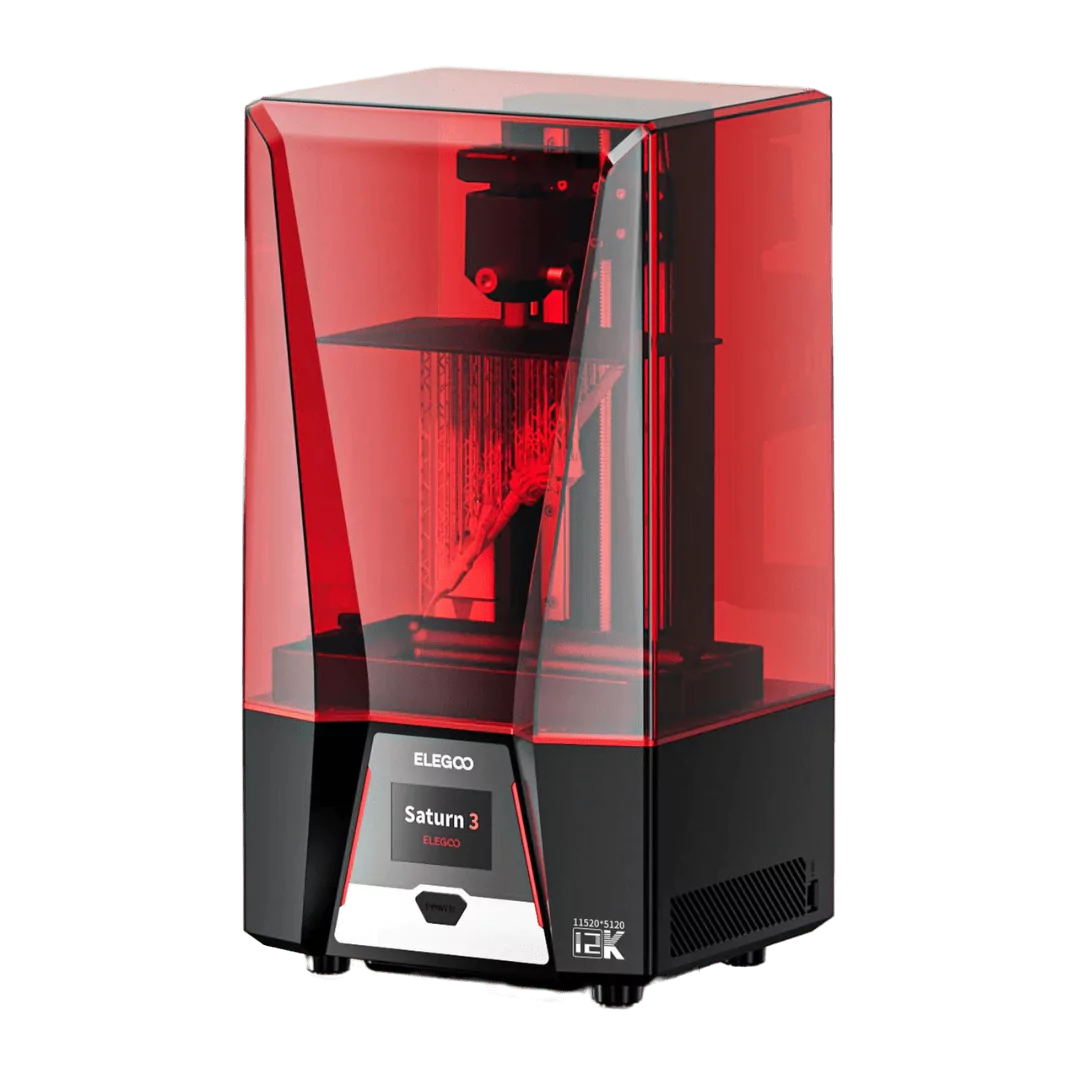

Elegoo Saturn 3 12K
The Elegoo Saturn 3 12K uses a 10-inch 12K monochrome LCD with 19 × 24 μm XY resolution to reproduce intricate models with excellent sharpness. Its tall 250 mm Z capacity and broad build area make it a versatile XL-format resin printer.
For dependable results, pair it with Monocure3D MSLA resins.
Elegoo Saturn 3 12K is an XL-format resin 3D printer designed for detailed, repeatable MSLA printing. 12K 10-inch monochrome LCD with 11,520 × 5,120 resolution. Fine 19 × 24 μm XY resolution for crisp model detail. Large 218.88 × 122.88 × 250 mm build volume. Up to 70 mm/h print speed and replaceable 9H tempered LCD glass.
Recommended resin: Monocure3D MSLA resin selected for the printer's UV wavelength and application.
Original printer library record: https://old.monocure3d.com.au/printers/saturn-3-12k/
| Third-Party Materials | Yes |
|---|---|
| Operation | 3.5-inch touchscreen |
| Software | Chitubox |
| Connectivity | USB |
| Technology | 10-inch 12K monochrome LCD (MSLA) |
| Light Source | 405 nm UV integrated LED lights |
| XY Resolution | 19 × 24 μm (11,520 × 5,120 px) |
| Z-Axis Accuracy | 0.01 mm |
| Layer Height | 0.01–0.2 mm |
| Printing Speed | Up to 70 mm/h |
| Power Requirements | 100–240 V, 50/60 Hz, 24 V 7.5 A |
| Printer Size | 227 × 227 × 438.5 mm |
| Build Volume | 218.88 × 122.88 × 250 mm |
| Material | Monocure3D MSLA resins and compatible 405 nm UV-curing resins |
| Weight | 16.2 kg |
- 12K 10-inch monochrome LCD with 11,520 × 5,120 resolution
- Fine 19 × 24 μm XY resolution for crisp model detail
- Large 218.88 × 122.88 × 250 mm build volume
- Up to 70 mm/h print speed and replaceable 9H tempered LCD glass
- Compatible with Monocure3D MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
