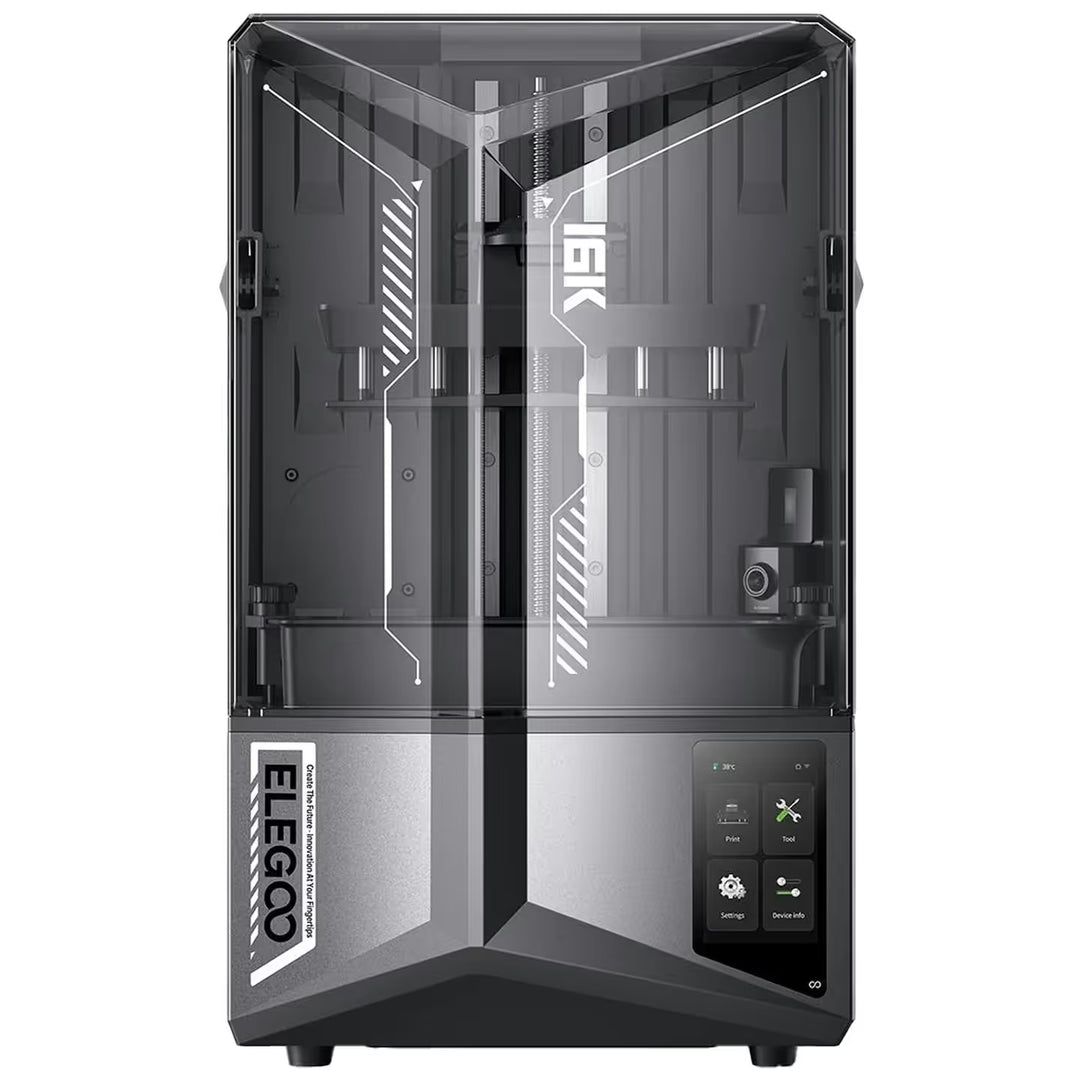

Elegoo Saturn 4 Ultra 16K
The Elegoo Saturn 4 Ultra 16K combines extremely fine 14 × 19 µm pixels with a useful 211.68 × 118.37 × 220 mm build volume. Automatic levelling, tilt release, resin heating and AI monitoring make it a compelling printer for detailed batch production.
Use it with Monocure3D MSLA resins for professional materials and application support.
Contact Monocure3D for current availability, lead time and a tailored resin recommendation.
The Saturn 4 Ultra 16K is a high-resolution mid-size resin platform suited to miniature production, product development, jewellery and detailed technical work. Its 10-inch 16K monochrome screen offers a fine 14 × 19 µm pixel size, while smart tank heating, automatic levelling, tilt release and AI monitoring improve workflow consistency. Monocure3D can recommend a compatible resin and starting settings.
| Operation | 4-inch capacitive touchscreen |
|---|---|
| Software | CHITUBOX |
| Connectivity | USB and Wi-Fi |
| Technology | 10-inch 16K monochrome LCD (MSLA) |
| Light Source | 405 nm COB + Fresnel collimating lens |
| XY Resolution | 15120 × 6230 pixels (14 × 19 µm) |
| Layer Height | 0.01–0.20 mm |
| Printing Speed | Up to 150 mm/hr |
| Build Volume | 211.68 × 118.37 × 220 mm (5.5 L) |
| Resin Heating | Smart tank heating to 30 °C |
| Net Weight | Approximately 14.5 kg |
| Safety Features | AI camera, residue detection and power-loss recovery |
| Recommended Material | Monocure3D MSLA resins |
- 10-inch 16K monochrome LCD
- Fine 14 × 19 µm XY pixel size
- 211.68 × 118.37 × 220 mm build volume
- Smart tank heating, tilt release and AI monitoring
- Recommended for Monocure3D MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
