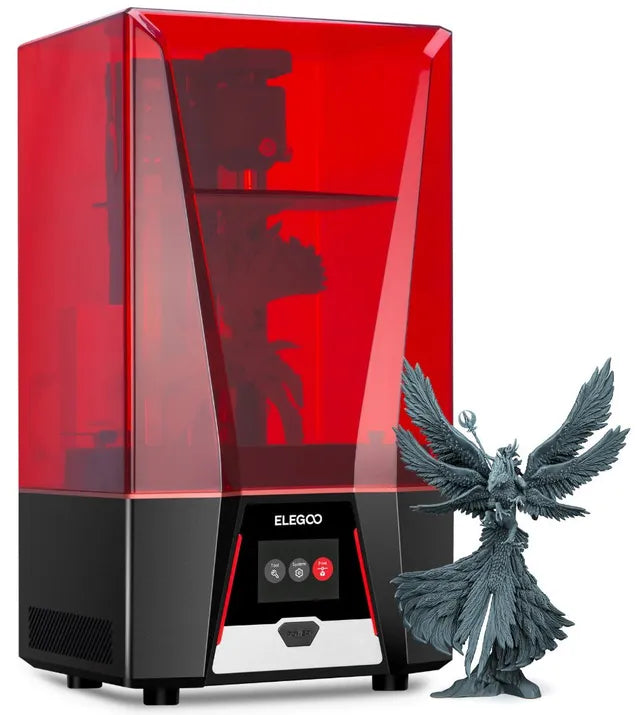

Elegoo Saturn 8K
The Elegoo Saturn 8K pairs a 10-inch 8K monochrome LCD with a 218.88 × 123.12 × 210 mm build volume. Its 28.5 µm XY resolution and 405 nm COB light engine support detailed, uniform printing across a generous platform.
The Elegoo Saturn 8K is a large-format desktop MSLA printer with a 10-inch 8K monochrome LCD. Its 7680 × 4320 resolution delivers a 28.5 µm XY pixel size across a 218.88 × 123.12 × 210 mm build volume. A 405 nm COB light source and dual linear-rail Z axis support uniform curing and stable motion. Use the linked XL starting profile with compatible Monocure3D MSLA resins.
| Operation | 3.5-inch touchscreen |
|---|---|
| Software | CHITUBOX |
| Connectivity | USB |
| Technology | 10-inch 8K monochrome LCD (MSLA) |
| Light Source | 405 nm COB UV light source |
| XY Resolution | 7680 × 4320 pixels (28.5 µm) |
| Layer Height | 0.01–0.20 mm |
| Printing Speed | 30–70 mm/hr |
| Build Volume | 218.88 × 123.12 × 210 mm |
| Printer Size | 280 × 240 × 463 mm |
| Net Weight | Approximately 11 kg |
| Recommended Material | Monocure3D MSLA resins |
- 10-inch 8K monochrome LCD
- 7680 × 4320 resolution with 28.5 µm XY pixel size
- 218.88 × 123.12 × 210 mm build volume
- 405 nm COB light source
- Compatible with Monocure3D MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
