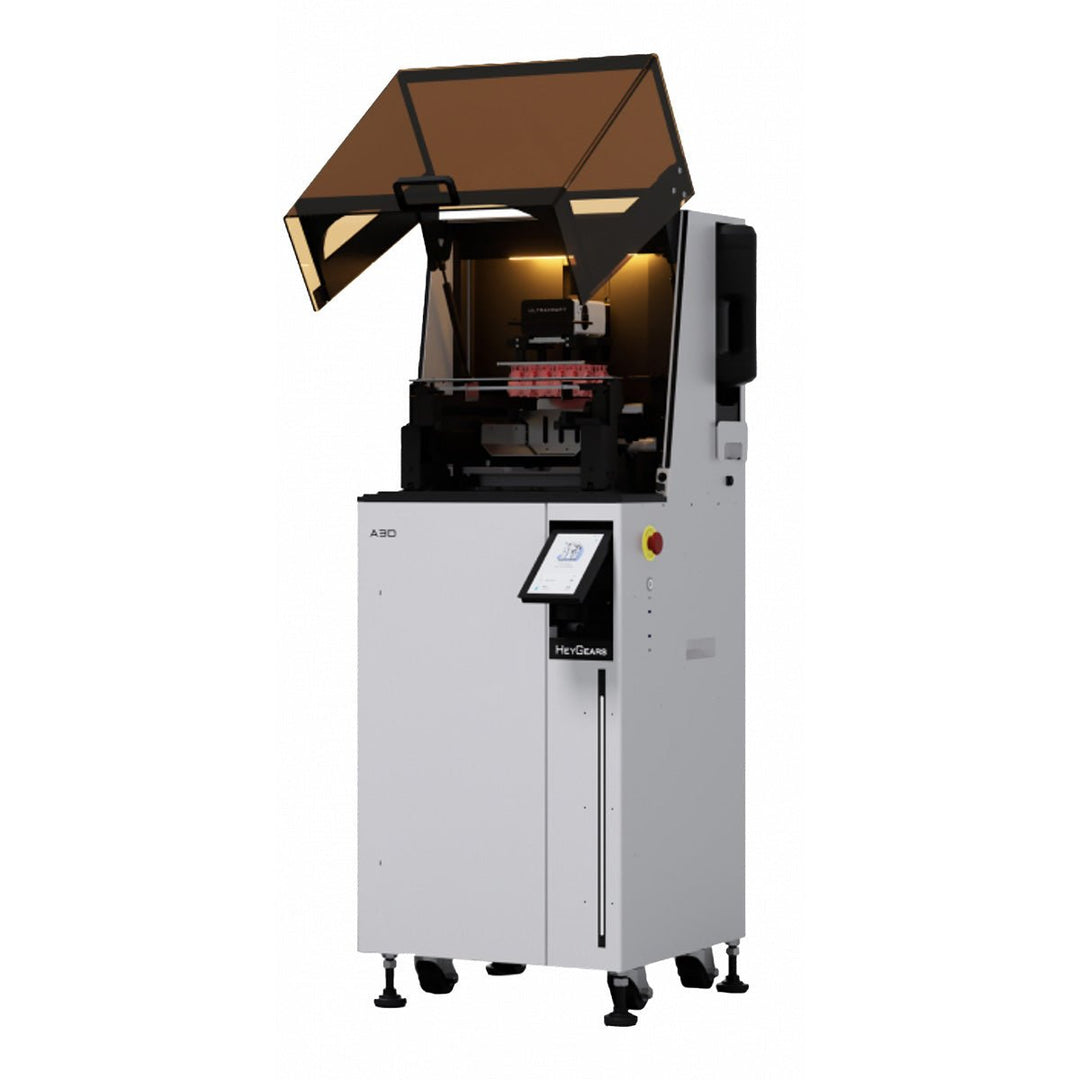

HeyGears UltraCraft A3D

The HeyGears UltraCraft A3D is a high-volume dental DLP printer built for scalable laboratory production, with optional automated part removal and resin handling for continuous operation.

HeyGears dental printers use managed material and application workflows. Contact Monocure3D to confirm whether a selected Monocure3D dental or DLP resin can be supported on your printer and to request appropriate starting profiles and calibration guidance.

Contact Monocure3D for current availability, a tailored quotation and compatible dental resin workflow advice.

For biocompatible or regulated dental applications, follow the validated printing, washing and post-curing process supplied for the material and application in your region.

UltraCraft A3D is designed for dental laboratories that need repeatable, high-volume manufacturing. Its 159 × 144 × 110 mm platform provides substantially more batch capacity than a conventional chairside printer while retaining a 75 µm native pixel size and ±37.5 µm stated precision. Optional automatic part removal and resin-refill functions allow the system to form part of a largely unattended production cell for orthodontic, restorative, implant and removable applications.

Technology Industrial DLP
Build Volume 159 × 144 × 110 mm
Resolution 2160 × 1920
XY Native Pixel 75 µm
Build Precision ±37.5 µm
Wavelength 385 nm
Light Source Life >30,000 hours
Printer Size 510 × 550 × 1400 mm
Net Weight 101 kg; approximately 117 kg with automatic part removal
Power 110–220 V, 50/60 Hz, 500 W
Automation Optional automatic part removal; resin refill included
Recommended Material Contact Monocure3D for supported workflow advice
  • Large 159 × 144 × 110 mm dental production platform
  • Designed for scalable, high-volume laboratory workflows
  • Optional automatic part removal and resin refill
  • 385 nm DLP engine with over 30,000-hour stated life
  • Cloud-connected monitoring and production management

Dial in your resin for the best print results

Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.

View Calibration Models

Monocure3D Resin Profiles for HeyGears Dental Printers

Request compatible Monocure3D material guidance for your HeyGears dental workflow. HeyGears systems use printer-, material- and application-specific production strategies, so compatibility and profile availability must be confirmed for the exact printer and intended dental application.

Request a printer-specific resin profile

Tell us your HeyGears printer model, the Monocure3D resin you want to use, your application and your location. Our team will confirm whether a suitable workflow is available and provide the appropriate starting guidance.

Supported printer enquiries: UltraCraft MMF, A3D, A2D HD, A2D 4K, A2D, ChairSide Pro and ChairSide.
Information we require: Printer model, resin name, colour, layer height, dental application and region.
Profile availability: Profiles are supplied only where the material, hardware and application workflow can be appropriately supported.
Calibration: Always confirm exposure and dimensional performance before beginning production.
Request HeyGears Resin Support View Calibration Models
Important: For biocompatible or regulated applications, follow the validated printing, washing and post-curing instructions for the material and intended use. A general compatibility statement does not replace an application-specific validated workflow.
