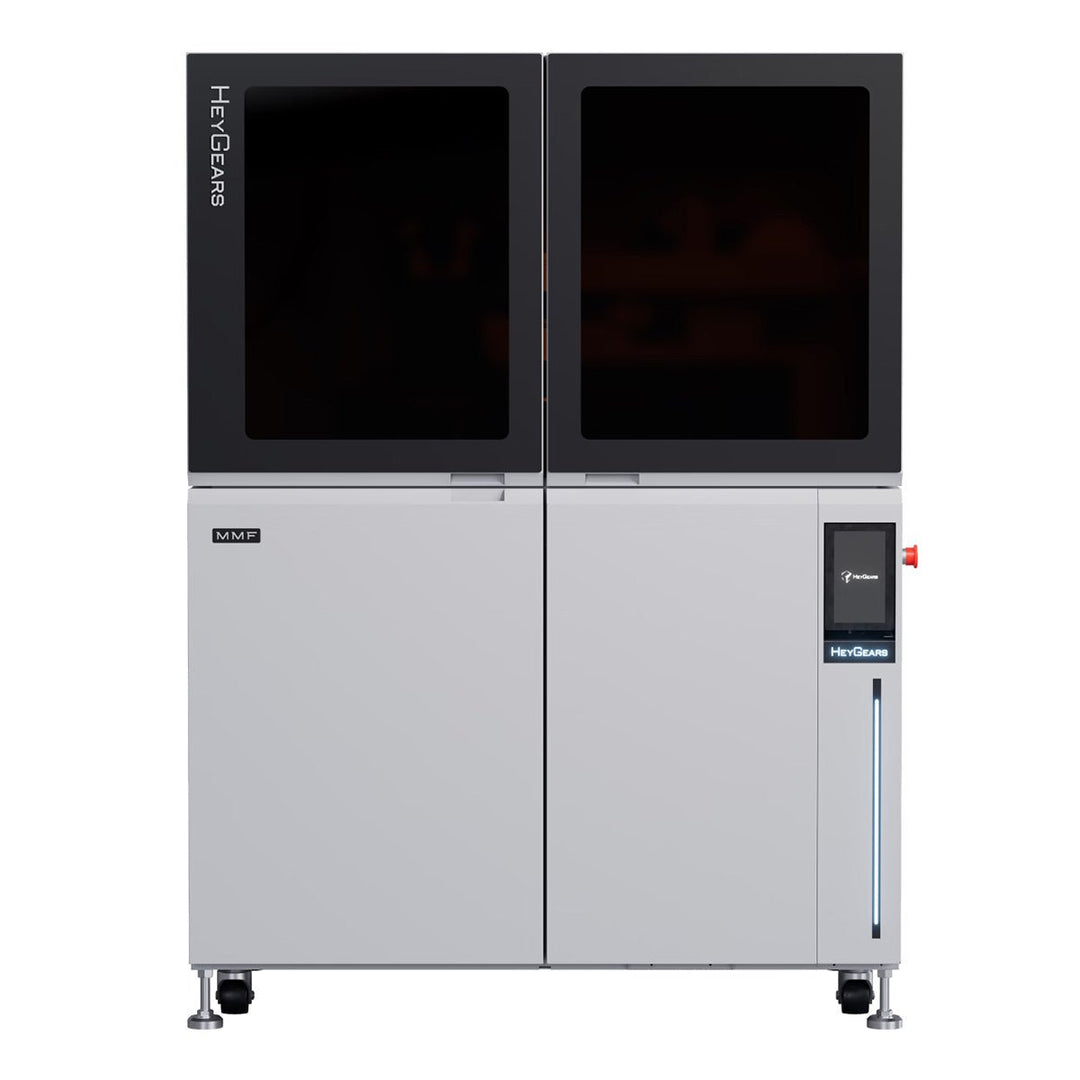

HeyGears UltraCraft MMF
The HeyGears UltraCraft MMF is an industrial dual-material DLP system designed to produce one-piece dentures by printing denture base and teeth materials within a single integrated workflow.
HeyGears dental printers use managed material and application workflows. Contact Monocure3D to confirm whether a selected Monocure3D dental or DLP resin can be supported on your printer and to request appropriate starting profiles and calibration guidance.
For biocompatible or regulated dental applications, follow the validated printing, washing and post-curing process supplied for the material and application in your region.
UltraCraft MMF is HeyGears’ specialist production platform for one-piece digital dentures. Its dual-material DLP process integrates denture base and teeth without a separate adhesive bonding stage, helping laboratories reduce manual work and improve repeatability. The 163.2 × 91.8 × 110 mm build volume, 42.5 µm native pixel size and ±21.3 µm stated accuracy support precise dental production. This is a large, installation-led industrial system intended for laboratories establishing a dedicated denture workflow.
| Technology | Dual-material DLP |
|---|---|
| Build Volume | 163.2 × 91.8 × 110 mm |
| Resolution | 3840 × 2160 |
| XY Native Pixel | 42.5 µm |
| Accuracy | ±21.3 µm (4K) |
| Wavelength | 385 nm |
| Printer Size | 1200 × 810 × 1650 mm |
| Net Weight | 480 kg |
| Included Modules | Booster and negative-pressure module |
| Primary Application | One-piece denture production |
| Recommended Material | Contact Monocure3D for supported workflow advice |
- Dual-material DLP printing for one-piece dentures
- Integrates denture base and teeth without adhesive bonding
- 163.2 × 91.8 × 110 mm production build volume
- 42.5 µm native pixel size with ±21.3 µm stated accuracy
- Industrial installation with integrated production modules
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
