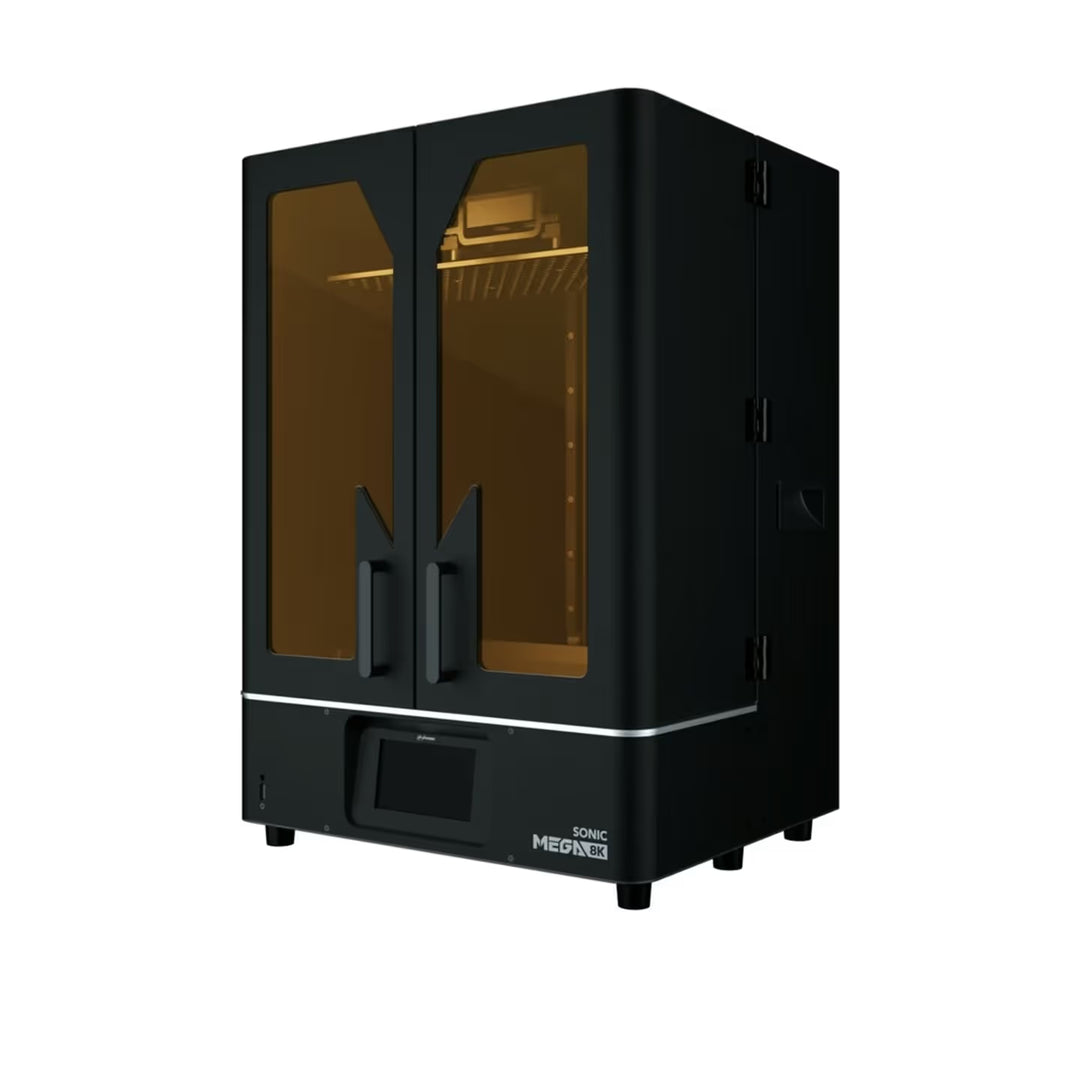

Phrozen Sonic Mega 8K
The Phrozen Sonic Mega 8K is a genuine large-format resin production platform with a huge 330 × 185 × 400 mm build volume. Its 15-inch 8K monochrome LCD delivers 43 µm XY resolution, enabling large prototypes, statues and densely packed production runs.
Use it with Monocure3D MSLA resins for Australian material support across modelling, engineering and specialist applications.
Contact Monocure3D for current availability, lead time and a tailored resin recommendation.
The Phrozen Sonic Mega 8K is designed for very large resin parts and highly efficient batch production. Its 15-inch 8K monochrome LCD covers a substantial 330 × 185 mm plate, with a 400 mm Z height for ambitious models. A pre-calibrated build platform, full-metal structure and reinforced motion system help manage large prints. Monocure3D can recommend a suitable MSLA resin and XXL starting profile.
| Operation | 5-inch touchscreen |
|---|---|
| Software | CHITUBOX 1.9.0 or later |
| Connectivity | USB and Ethernet |
| Technology | 15-inch 8K monochrome LCD (MSLA) |
| Light Source | 405 nm ParaLED Matrix 3.0 |
| XY Resolution | 43 µm |
| Layer Height | 0.01–0.30 mm |
| Build Volume | 330 × 185 × 400 mm (24.4 L) |
| Release Film | nFEP |
| Printer Size | Approximately 400 × 470 × 680 mm |
| Net Weight | Approximately 35 kg |
| Structure | Full-metal body with reinforced dual rails and ball screw |
| Recommended Material | Monocure3D MSLA resins |
- Massive 330 × 185 × 400 mm build volume
- 15-inch 8K monochrome LCD
- 43 µm XY resolution
- Pre-calibrated platform and full-metal construction
- Recommended for Monocure3D MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
