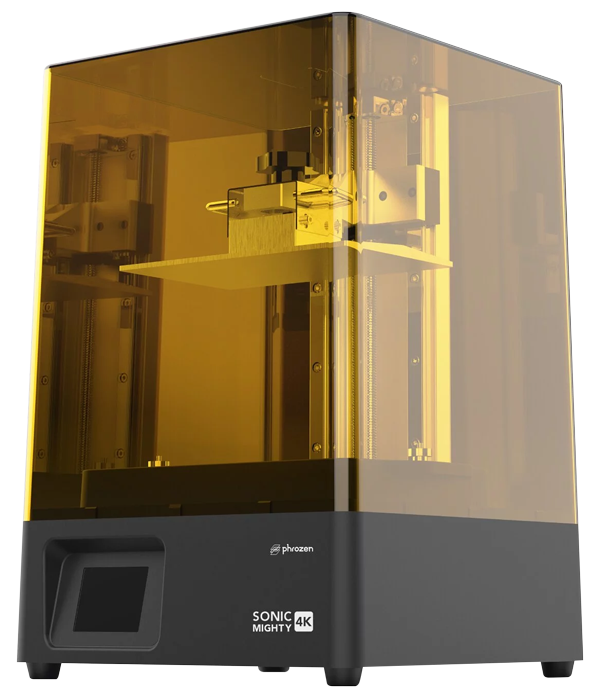

Phrozen Sonic Mighty 4K
The Phrozen Sonic Mighty 4K offers a 200 × 125 × 220 mm build volume with 52 µm XY resolution. Its monochrome LCD, ParaLED Matrix 2.0 light engine and compact footprint make it a capable XL-format option for larger resin models and batch printing.
The Phrozen Sonic Mighty 4K is designed to accommodate larger models while maintaining reliable detail. Its monochrome LCD provides 52 µm XY resolution over a 200 × 125 × 220 mm build volume, while the 405 nm ParaLED Matrix 2.0 light engine supports consistent curing. Use the linked XL resin selector with Monocure3D MSLA resins and confirm exposure before production printing.
| Operation | 2.8-inch touchscreen |
|---|---|
| Software | CHITUBOX; compatible with Lychee Slicer |
| Connectivity | USB |
| Technology | 4K monochrome LCD (MSLA) |
| Light Source | 405 nm ParaLED Matrix 2.0 |
| XY Resolution | 52 µm |
| Layer Height | 0.01–0.30 mm |
| Printing Speed | Up to 80 mm/hr |
| Build Volume | 200 × 125 × 220 mm |
| Printer Size | 293 × 293 × 432 mm |
| Net Weight | 8 kg |
| Power Requirements | DC 24 V, 3 A |
| Recommended Material | Monocure3D MSLA resins |
- 4K monochrome LCD with 52 µm XY resolution
- 200 × 125 × 220 mm build volume
- 405 nm ParaLED Matrix 2.0 light source
- Maximum stated printing speed of 80 mm/hr
- Compatible with Monocure3D MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
