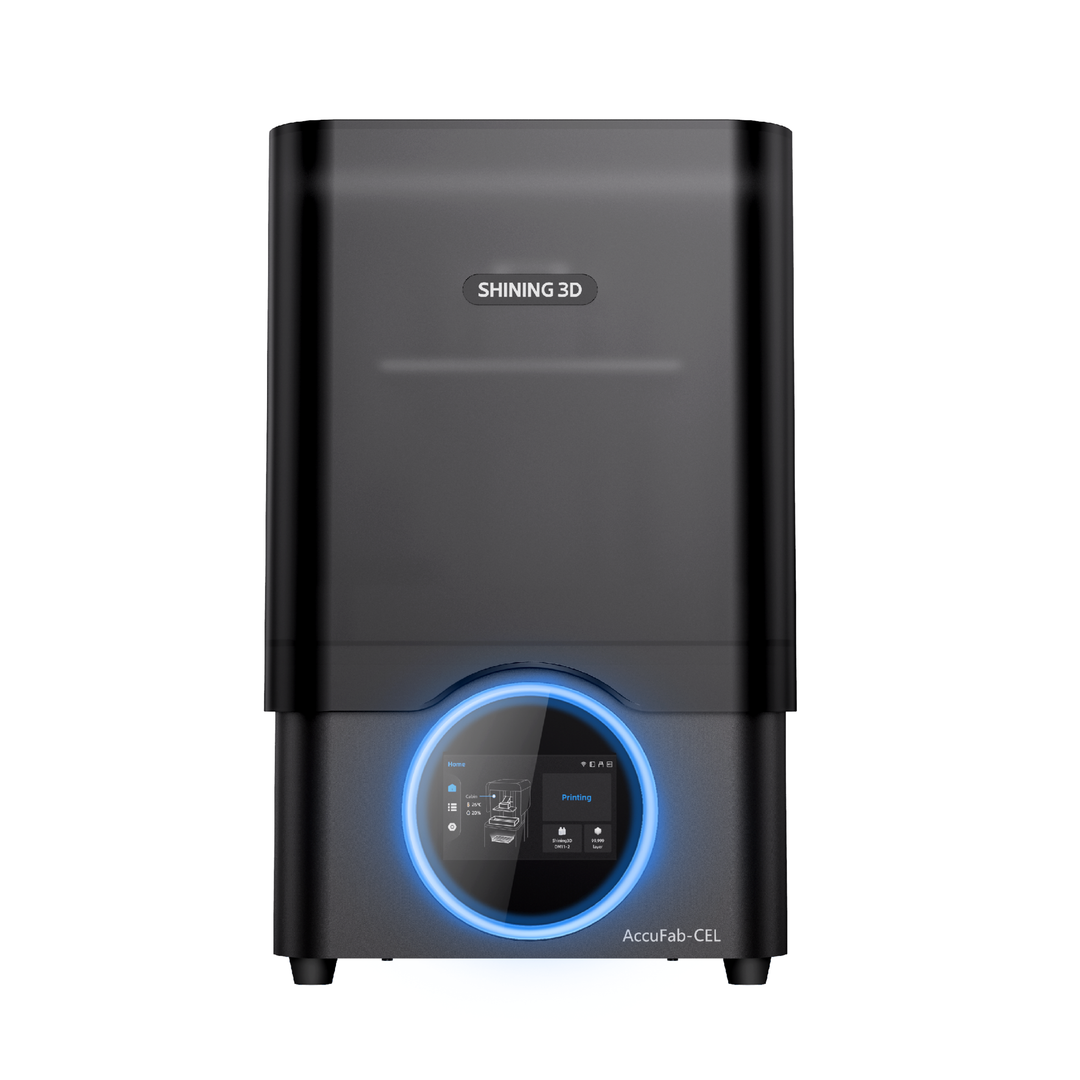

SHINING 3D AccuFab-CEL

SHINING 3D AccuFab-CEL

The SHINING 3D AccuFab-CEL combines patented CPL optics, 5.7K resolution and up to 100 mm/h printing for productive dental laboratories and clinics. Dual platform sizes, intelligent cabin control and the optional HyperClear workflow support a wide range of accurate dental applications.

The open-material AccuFab workflow supports selected third-party photopolymer resins. Contact Monocure3D for compatible Monocure3D dental and MSLA/DLP resin recommendations, printer-specific starting profiles and calibration guidance.

Contact Monocure3D for current availability, a tailored quotation and compatible dental resin workflow advice.

For biocompatible or regulated dental applications, follow the resin manufacturer’s validated printing, washing and post-curing instructions and confirm the requirements applicable in your region.

The SHINING 3D AccuFab-CEL is a fast, precision-focused dental production printer for clinics and laboratories. Its patented Collimated Programmable Lithography optical system, 5760 × 3600 resolution and specified ±35 µm accuracy deliver detailed restorations and appliances. Users can choose a compact 70 × 70 mm platform or the larger 192 × 120 mm format. Intelligent cabin monitoring and heating, an NFC-enabled tank and cloud-connected AccuWare workflow improve daily reliability. HyperClear tank support provides an efficient option for transparent splint and retainer workflows.

Technology Collimated Programmable Lithography (CPL)
Resolution 5760 × 3600 pixels
Build Volume 70 × 70 × 180 mm or 192 × 120 × 180 mm
Print Speed Up to 100 mm/h, material and layer dependent
Accuracy ±35 µm under manufacturer test conditions
Layer Thickness 50–100 µm, adjustable
Platform Multi-size ceramic platform with one-click lock
Cabin Control Temperature and humidity monitoring; heating to 27°C
Resin Tank NFC enabled; HyperClear tank supported
Connectivity USB, Wi-Fi and Ethernet
Printer Size 360 × 360 × 530 mm
Net Weight 22 kg
Software AccuWare with Dental Cloud connectivity
Recommended Material Contact Monocure3D for compatible dental resin profiles
  • Patented CPL optical system with 5760 × 3600 resolution
  • Specified ±35 µm accuracy and print speeds up to 100 mm/h
  • Choice of 70 × 70 mm or 192 × 120 mm ceramic platform
  • Intelligent cabin monitoring with automatic heating to 27°C
  • Supports open materials and the optional HyperClear workflow

Dial in your resin for the best print results

Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.

View Calibration Models

Monocure3D Resin Profiles for SHINING 3D AccuFab Printers

Monocure3D can provide compatible resin recommendations and printer-specific starting profiles for supported SHINING 3D AccuFab dental printers. Profiles are matched to the exact printer, resin, colour, layer height and intended application to provide a safer and more reliable starting point.

Request the correct AccuFab resin profile

Tell us your AccuFab printer model, the Monocure3D resin you intend to use, your preferred layer height and your application. Our team will provide the most appropriate available starting profile and calibration guidance.

Request Resin Settings View Calibration Models

Information to include with your request

  1. Confirm the full SHINING 3D AccuFab printer model.
  2. Provide the Monocure3D resin name and colour.
  3. Tell us the required layer height, such as 50 µm or 100 µm.
  4. Describe the intended dental or laboratory application.
  5. Confirm the version of AccuWare or other printer software being used.
  6. After receiving the profile, complete a calibration print before production use.

Supported AccuFab printer family

AccuFab-Aris

Compact chairside dental printing with a 4K monochrome LCD workflow.

AccuFab-CEL

High-speed dental production using SHINING 3D CPL optical technology.

AccuFab-F1

Professional DLP production for demanding dental and restorative materials.

AccuFab-L4D

Open 4K dental production for models, guides, trays and laboratory workflows.

AccuFab-L4K

Open 4K resin printing for dental and general laboratory applications.

AccuFab-D1s

Legacy DLP platform supported for compatible materials and existing owners.

Important: Recommended profiles are starting points, not guaranteed final settings. Confirm exposure, dimensional accuracy and application suitability with a calibration print. For biocompatible or regulated applications, follow the resin instructions and all applicable washing, post-curing and regional requirements.
