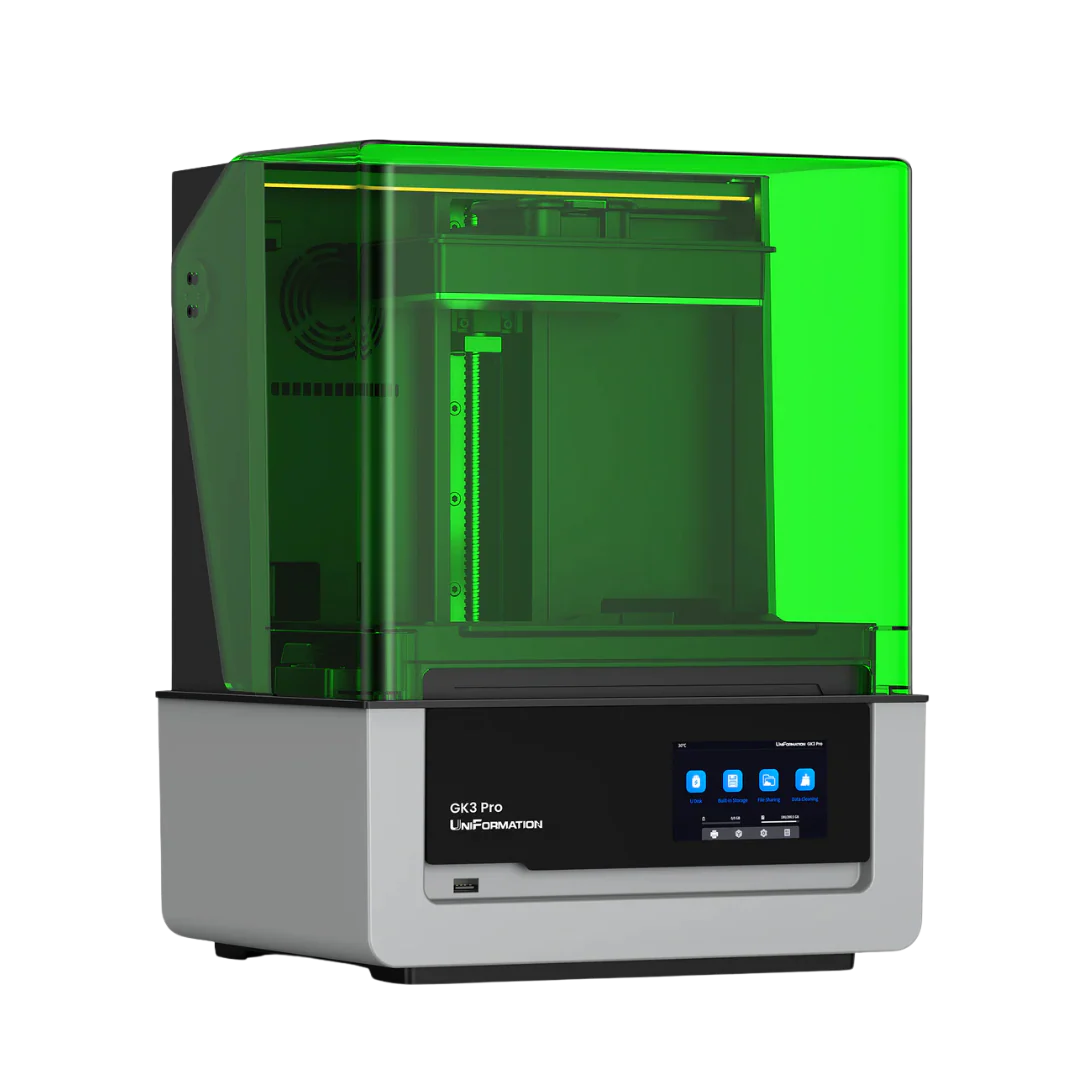

Uniformation GK3 Pro
The Uniformation GK3 Pro brings fine-detail 16K printing to an XL desktop platform. Its 385 nm COB and Fresnel optical system, heated chamber, smart resin feed and built-in monitoring camera support precise and repeatable production.
For dependable results, pair it with suitable Monocure3D MSLA resins.
Already own this printer? Use the specifications and tested resin settings below, then explore Monocure3D resins for your next print.
Uniformation GK3 Pro is an XL-format resin 3D printer designed for detailed, repeatable MSLA printing. 16K 9.6-inch monochrome LCD with ultra-fine 14 × 19 μm pixels. 385 nm COB and Fresnel collimating optical system. Heated chamber and smart automatic resin feeding. Built-in camera, app support and 90-degree rotating touchscreen.
Recommended resin: Monocure3D MSLA resin selected for the printer's UV wavelength and application.
Original printer library record: https://old.monocure3d.com.au/printers/gk3-pro/
| Third-Party Materials | Yes |
|---|---|
| Operation | 5-inch capacitive touchscreen with 90° rotation |
| Software | Uniformation Slicer, Chitubox and Lychee Slicer |
| Connectivity | Wi-Fi, Ethernet and USB |
| Technology | 9.6-inch 16K monochrome LCD (MSLA) |
| Light Source | 385 nm COB with Fresnel collimating lens |
| XY Resolution | 14 × 19 μm |
| Layer Height | 0.03, 0.05 or 0.1 mm |
| Exposure Time | 2–3 seconds per layer at 0.05 mm |
| Release Film | nFEP film |
| Power Requirements | 110/220 V |
| Printer Size | 392 × 332 × 520 mm |
| Build Volume | 211 × 118 × 240 mm |
| Material | Suitable Monocure3D MSLA resins and compatible 385 nm UV-curing resins |
| Package Weight | 24 kg |
- 16K 9.6-inch monochrome LCD with ultra-fine 14 × 19 μm pixels
- 385 nm COB and Fresnel collimating optical system
- Heated chamber and smart automatic resin feeding
- Built-in camera, app support and 90-degree rotating touchscreen
- Compatible with suitable Monocure3D MSLA resins
Dial in your resin for the best print results
Use our calibration models to fine-tune your printer’s exposure settings for your chosen resin.
