405nm UV Meter
405nm UV Meter
  • 405nm UV Meter
  • 405nm UV Meter

405nm UV Meter for Resin 3D Printers

Original price was: $186.51.Current price is: $116.57.

Our 405nm UV Meter is designed to measure UV light intensity in resin 3D printers, helping you maintain accurate curing performance and consistent print results.

This item ships directly from our overseas warehouse to ensure you receive the latest and best available version. As soon as it ships, you will receive tracking information.

Please note: electrical equipment may not include the correct plug for your country unless specified.

Clear

SKU N/A Categories , Tags , , , , ,

Description

Description

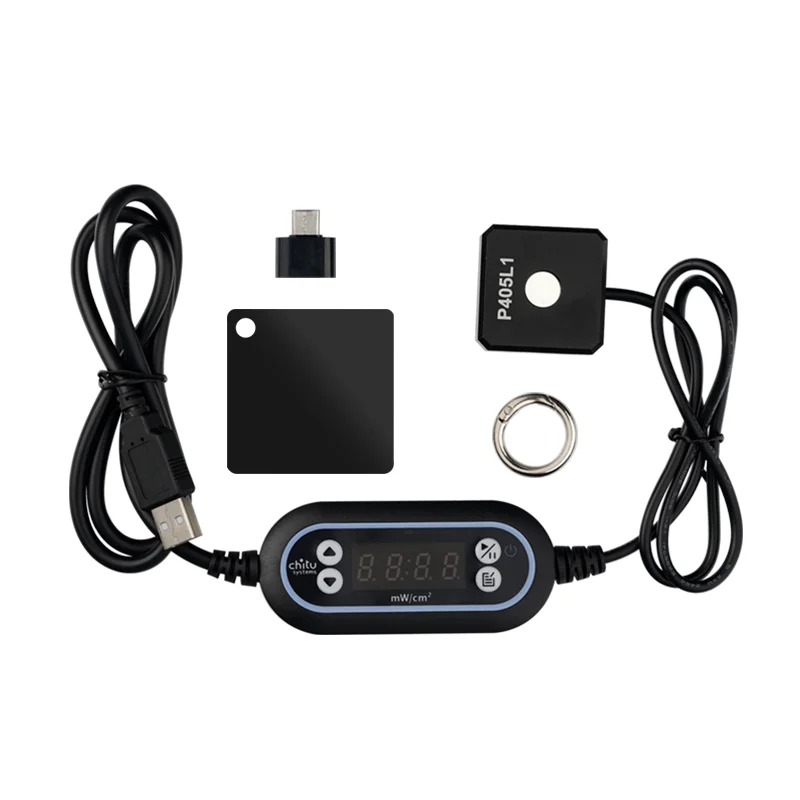

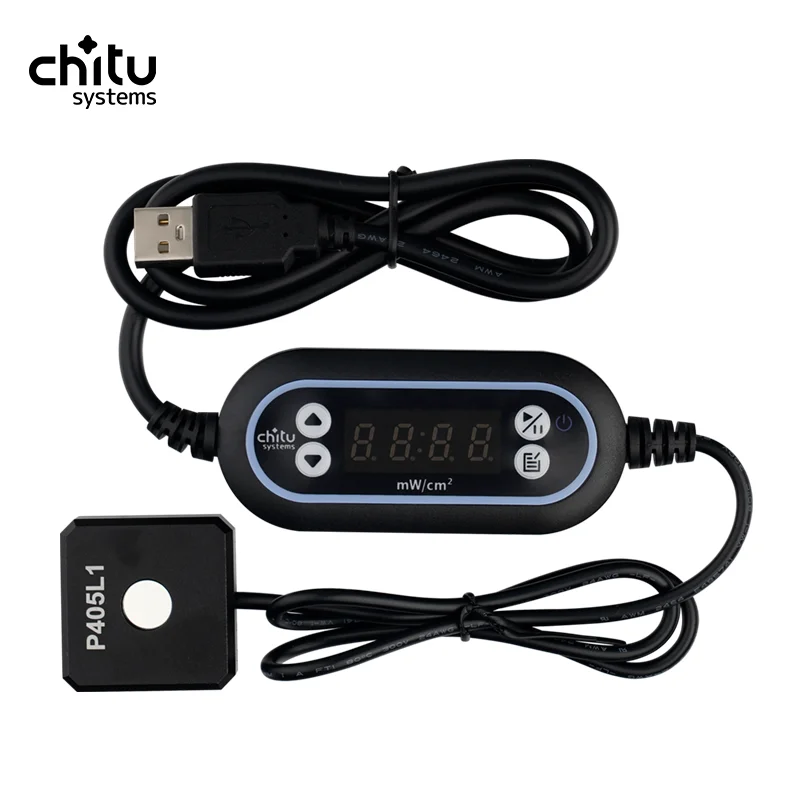

The Chitu Systems 405nm UV Meter is a precision tool developed for resin 3D printers to measure the intensity of 405nm UV light. By accurately monitoring your printer’s light output, you can ensure that curing power remains consistent over time, avoiding failed prints or under-cured models.

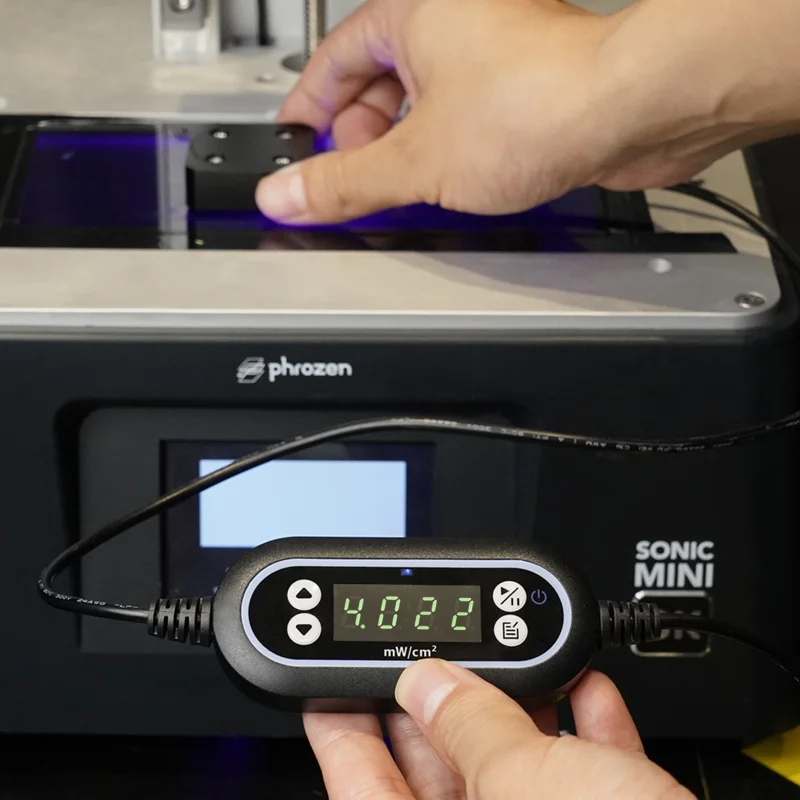

This UV meter is an essential accessory for calibration, troubleshooting, and maintenance. It allows you to quickly assess whether your printer’s LED array is functioning at the correct output levels, helping extend the lifespan of your equipment and maintain print quality.

Compact and easy to use, the Chitu UV Meter is suitable for hobbyists, professionals, and labs that require accurate resin curing conditions.

Key Features

  • Measures 405nm UV light intensity for resin 3D printers
  • Ensures accurate curing and consistent print results
  • Ideal for calibration, troubleshooting, and maintenance
  • Compact, portable, and easy to operate
  • Supports longer printer lifespan by monitoring LED performance

Specification

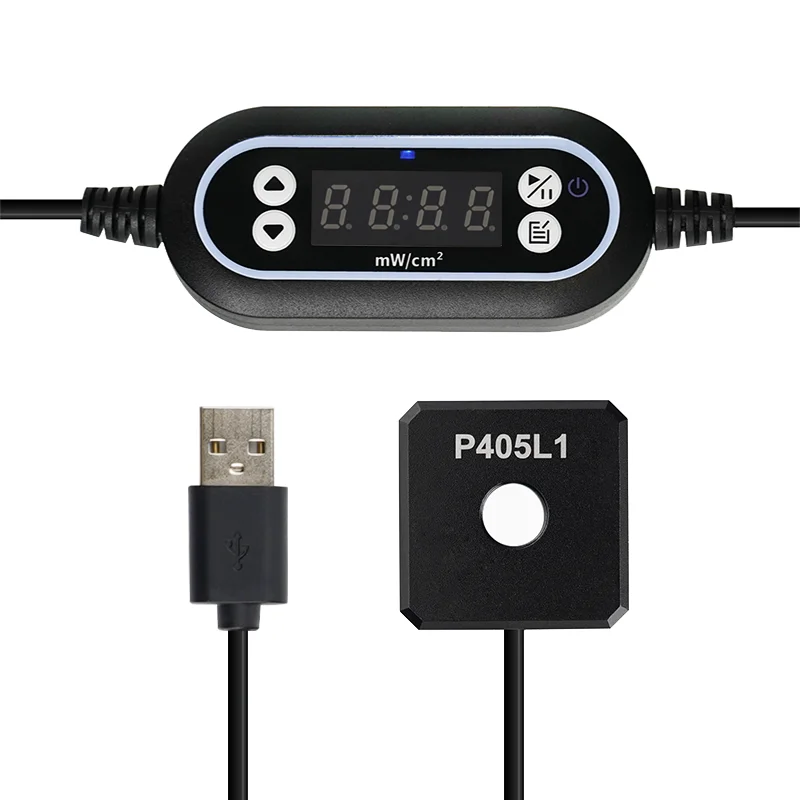

  • Probe type: P405L1
  • Probe size: 36×36×13.8mm
  • Spectral response range: 405nm ±3nm
  • Test hole diameter: φ=10mm
  • Power range: 0–50000μW/cm²
  • Measuring accuracy: ±10%
  • Input: 5V USB

Disclaimer: This UV meter is shipped directly from our overseas warehouse and will arrive separately from any locally made products. Once shipped, you will receive tracking information. These items are not stocked in Australia.













Remember:

  1. It requires a 5V voltage supply; the best way to do this is to use the board’s USB port directly before printing.
  2. Keep away from resin. If resin leaks on the probe, clean it with isopropyl alcohol with cotton.
  3. Extreme temperatures above 70℃ and below -10℃ can impact measurements; use in the indoor environment only.

Most 3d printers come with different screens and light sources. Because of the differences between UV light and screen transition rate, it is normal that you get other data in different test points.

Disclaimer: This UV meter is shipped directly from our overseas warehouse and will arrive separately from any locally made products. Once shipped, you will receive tracking information. These items are not stocked in Australia.

Additional information
Weight 0.5 kg
