Spring Steel Flexible Build Plate for Resin 3D Printers

Description

Description

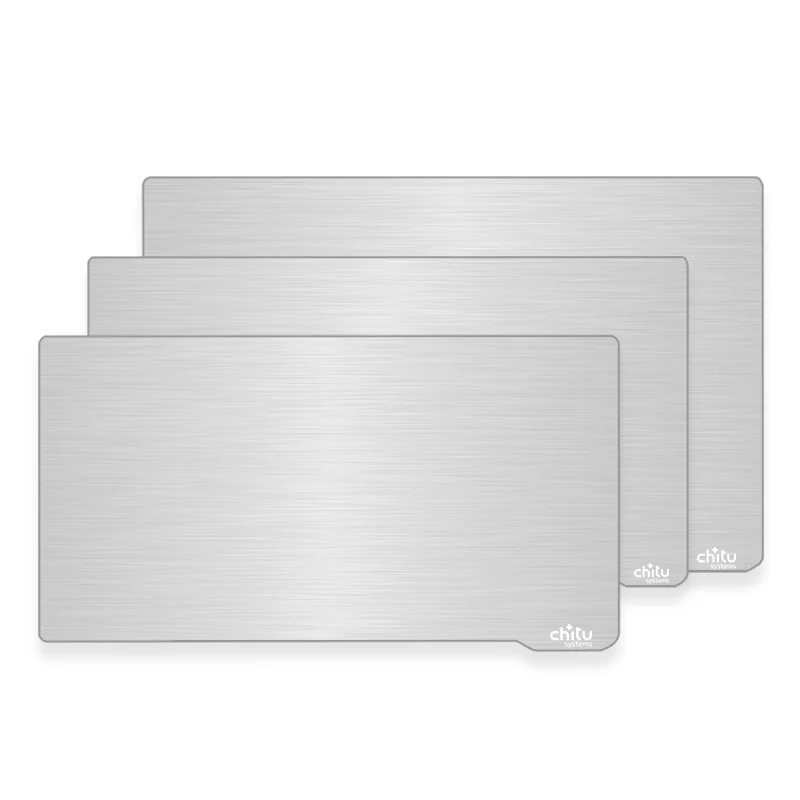

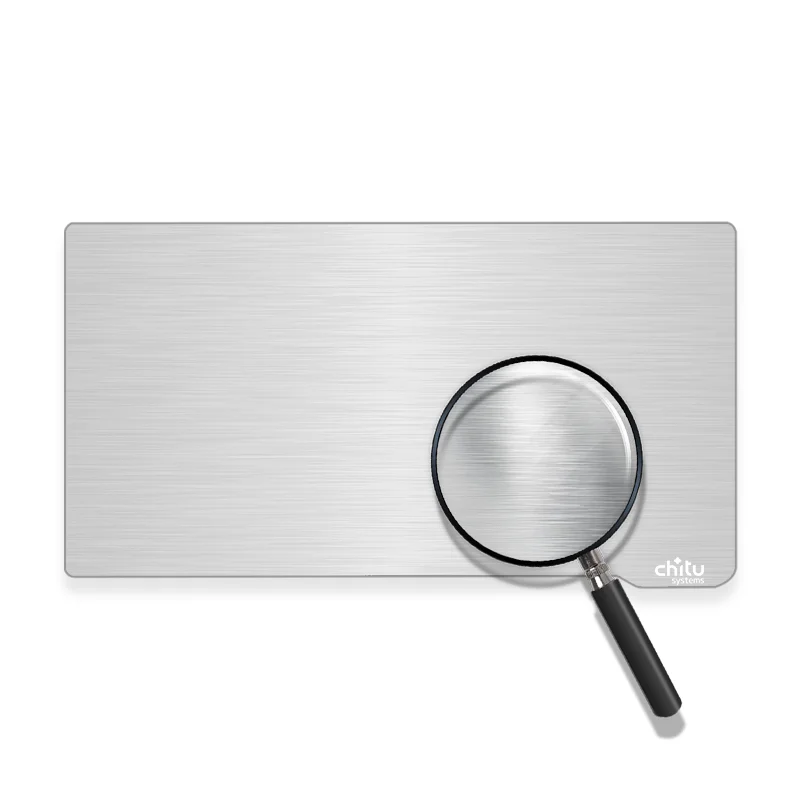

The Spring Steel Flexible Build Plate with Magnetic Base is designed to make resin 3D printing more convenient and efficient. Using a strong magnetic base and a flexible spring steel sheet, you can easily remove finished prints without risking damage to the model or build surface.

Compatible with popular UV resin 3D printers such as the Anycubic Photon and Elegoo Mars series, this build plate upgrade reduces downtime and simplifies the cleaning process. It is beneficial for users working on multiple projects or switching between different resin types.

With its durable construction and reliable magnetic hold, the flexible build plate is a practical accessory for both hobbyists and professionals looking to improve their resin printing workflow.

Key Features

• Flexible spring steel plate for easy print removal
• Strong magnetic base keeps the build plate secure during printing
• Compatible with Anycubic Photon, Elegoo Mars, and other LCD resin printers
• Reduces the risk of model damage when detaching prints
• Durable and long-lasting accessory for resin 3D printing

Disclaimer: This build plate is shipped directly from our overseas warehouse and will arrive separately from any locally made products. Once shipped, you will receive tracking information. These items are not stocked in Australia.

How to Install the Spring Steel Flexible Build Plate with Magnetic Base

What’s Included

• 1x Magnetic adhesive base

• 1x Spring steel flexible build plate

Tools You’ll Need

• Isopropyl alcohol (IPA) or surface cleaner

• Paper towels or lint-free cloth

• Plastic scraper (optional, for bubble removal)

Step 1: Prepare the Build Platform

1. Remove the existing build plate from your 3D printer if installed.

2. Clean the top surface thoroughly using isopropyl alcohol or a resin-safe cleaner.

3. Ensure the surface is dry, flat, and free of grease, dust, or resin residue.

Step 2: Apply the Magnetic Base

1. Peel off the adhesive backing from the magnetic base sheet.

2. Carefully align the magnetic base with your printer’s build plate.

3. Stick the sheet down slowly, pressing from the centre outward to avoid bubbles.

4. Smooth out the surface with your hand or a plastic scraper.

Step 3: Install the Spring Steel Plate

1. Place the spring steel flexible sheet on top of the magnetic base.

2. Ensure it locks firmly into place with no gaps or lifting edges.

Step 4: Re-Level the Build Plate

1. Reinstall the build plate onto your 3D printer.

2. Run the printer’s bed levelling process (manual or automatic, depending on your model).

3. Check the gap between the build plate and FEP film to confirm proper alignment.

Step 5: Test and Print

1. Start a small test print to confirm adhesion.

2. After the print finishes, flex the spring steel plate gently to release the model.

3. Clean the plate with IPA before the next print.

Important Notes

• Always re-level your printer after installing the flexible plate.

• Avoid using metal scrapers to remove prints, as the flexible plate does the job safely.

• Clean both the steel sheet and magnetic base regularly to maintain adhesion.
