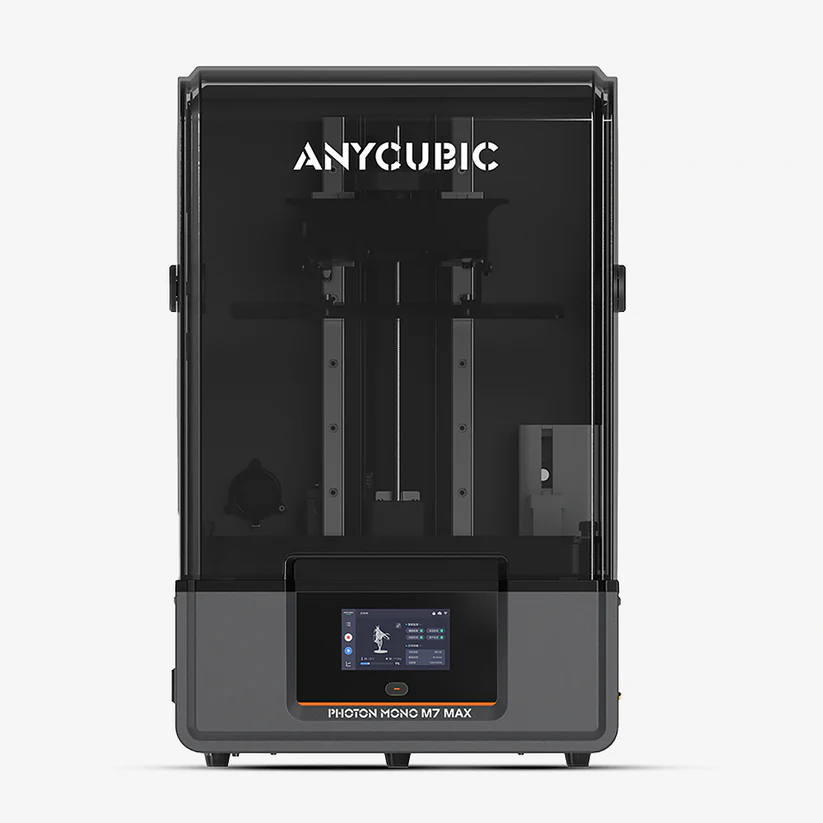

The Anycubic Photon M7 Max is the largest in the M7 range and the successor to the Photon M3 Max. It is designed to improve upon the previous model with many new automated features. While it has a massive build volume of 298 x 164 x 300mm, its screen resolution is lower; this may not be noticeable given the quality of prints the machine can produce. The Photon M7 Max is also faster than Anycubic’s previous large-format resin printer, allowing for quicker completion of large prints and batch printing. It also boasts new features such as resin and residue detection, a smart pressure system, a heated resin vat, autofill, and other features.

Learn More

Photon Mono M7 Max Printer Specifications

Operation : 4.3″ touch control Light source: COB light source
Software : Anycubic Slicing, CHITU & Lychee Printing Speed: Max Speed ≤31mm/h, 0.05mm Layer with Standard Resin; Max Speed ≤63mm/h, 0.1mm Layer With Standard Resin; Max Speed ≤86mm/h, 0.1mm Layer
Connectivity: USB & WiFi. LAN Levelling: Automatic
Volume: 14.7L Machine size: 425*362*652mm
LCD Resolution: 14K Print size: 298mm*164mm*300mm
XY Res.: 46*46μm Material: 405nm UV Resin
Z Axis Res.: 10μm Net Weight: 24kg / 52.91 lbs

Mono M7 Max Print Settings

Try our UNICAL™ Calibration Model

If you’re trying Monocure 3D Resin for the first time or have just got a new printer, you’ll need to tweak your slicer settings to ensure perfect synergy between our resin and your printer. The most efficient way to achieve this is by using a Calibration Model. These small, intricate models are quick to print. To calibrate your printer using the UNICAL™ Download the STL model here and for step-by-step instructions on how to use the UNICAL™ head to our 3D Calibration Model Page.
