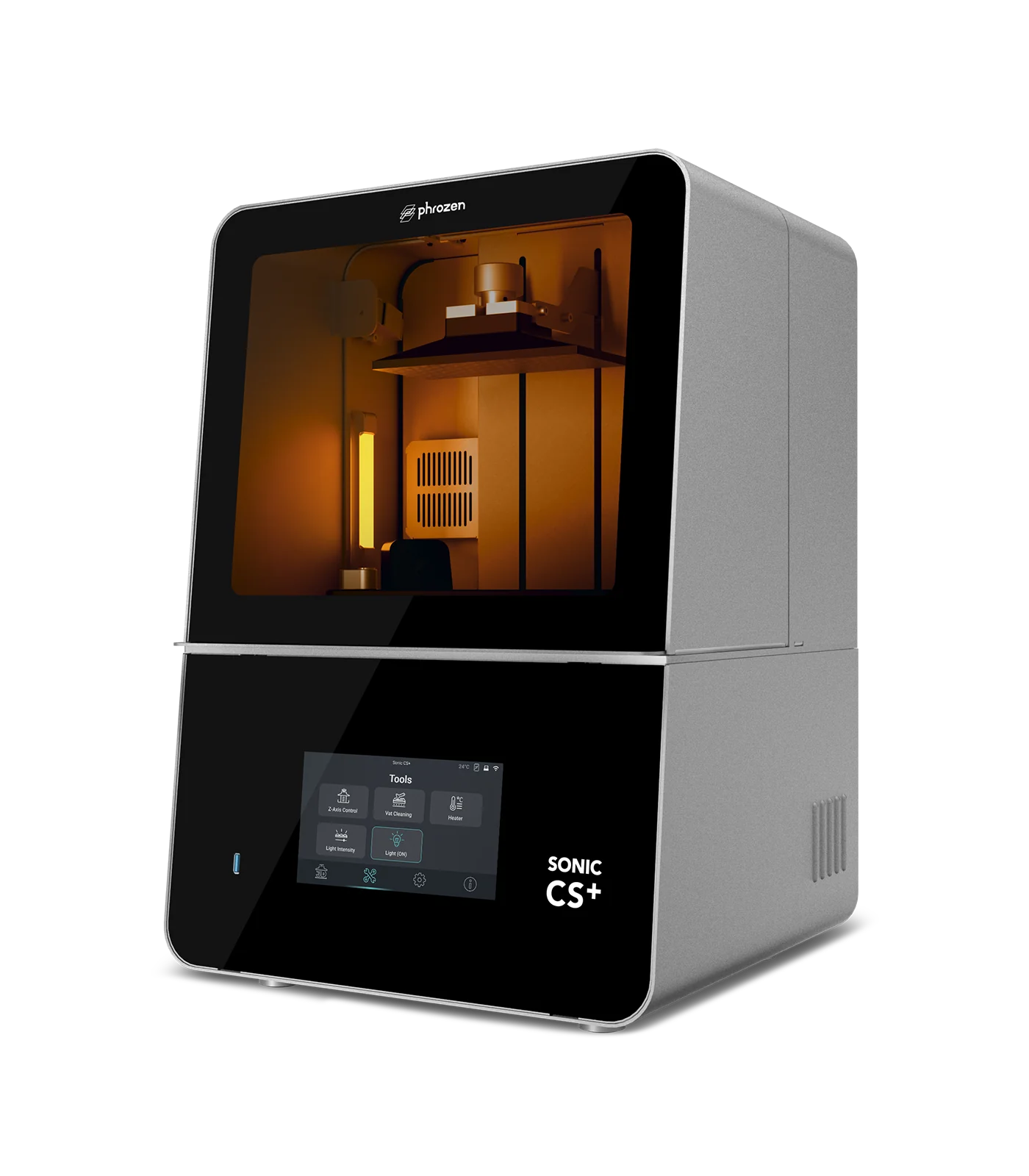

Sonic CS+ features a 385 nm LCD screen designed for superior accuracy and reliability. With enhanced per-layer light penetration, it delivers precise cross-arch fits for consistent, high-quality results — the perfect choice for your first journey into digital dentistry.

Learn More

Sonic CS+ Specifications



Operation: 7in Touch Panel Vat Volume: Std: 350 mL capacity

Mini: 150 mL capacity
Software : Phrozen DS Slicer Printing Speed: Up to 100 mm/h
Connectivity: USB, Wi-Fi, Ethernet Layer Height: 30, 50, 100µm
Technology: 9.1” Mono LCD Machine size: 33 x 29 x 47 cm
Light-source: LCD Print size: 20.9 x 13.3 x 17.5 cm
16.5 x 7.1 x 17.5 cm
XY Resolution: 34 μm Material: 385nm UV Resin
Z Resolution:  10 μm Heating System: Resin Vat + Chamber

Sonic CS+ Printer Settings

Try our UNICAL™ Calibration Model

If you’re trying Monocure 3D Resin for the first time or have just got a new printer, you’ll need to tweak your slicer settings to ensure perfect synergy between our resin and your printer. The most efficient way to achieve this is by using a Calibration Model. These small, intricate models are quick to print. To calibrate your printer using the UNICAL™ Download the STL model here and for step-by-step instructions on how to use the UNICAL™ head to our 3D Calibration Model Page.
