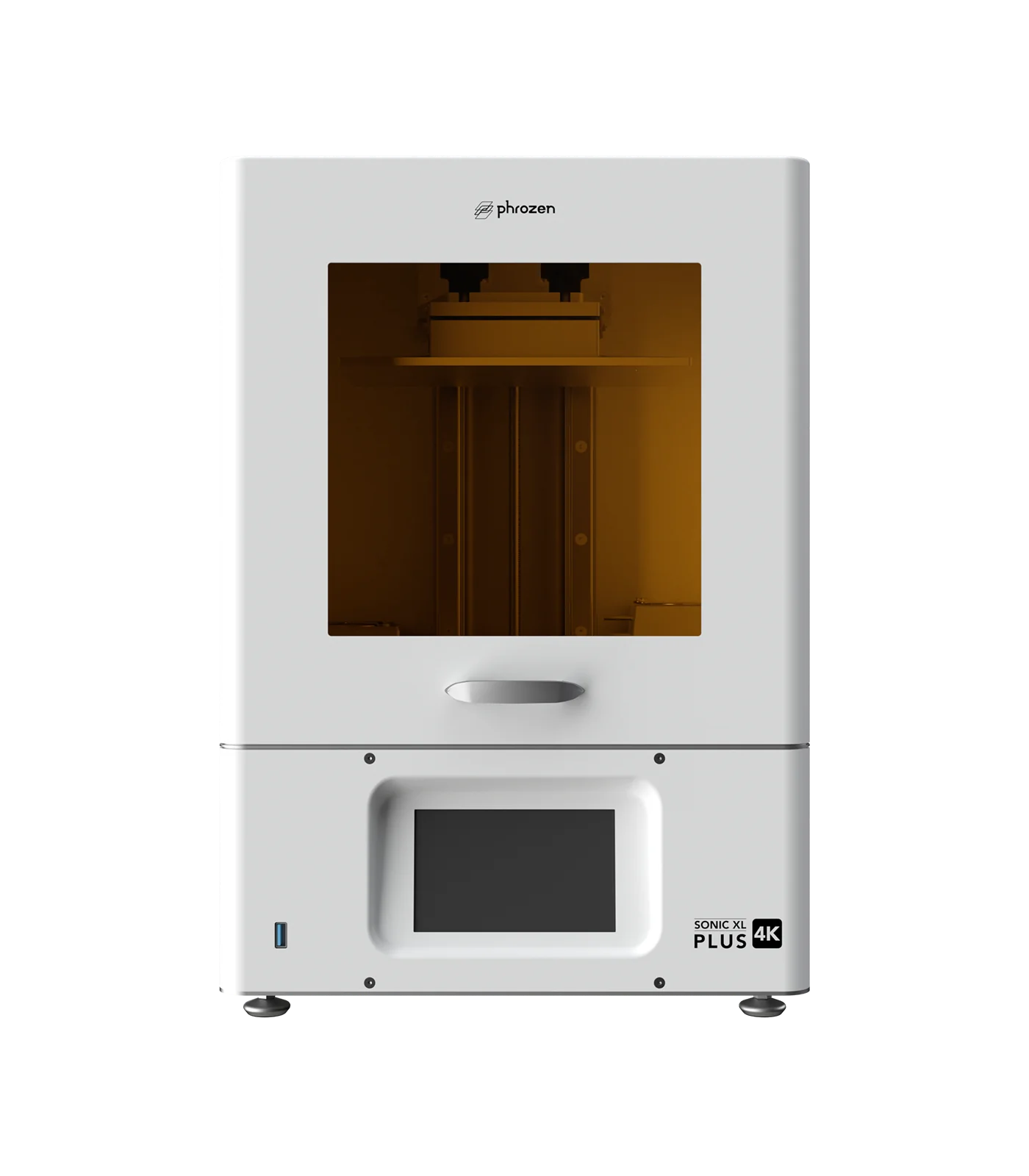

Phrozen has been elevating the LCD 3D printing technology to a whole new level and is now applying it in the dental field. With a larger printing volume and impeccable precision, Sonic XL 4K PLUS ensures excellent printing quality each time. On top of that, Sonic XL 4K PLUS features more robust operation to withstand the demands of large batch high-precision dental 3D printing.

Released in 2023, Sonic XL 4K Plus offers faster WiFi connectivity and improved build quality than its predecessor. Armed with workhorse output & large print volume, it has the capability to print 6 to 8 full-arch models in ±35 minutes. The Sonic XL 4K Plus also comes bundled with the Phrozen Dental Synergy (DS) Sl.

Learn More

Sonic XL 4K PLUS Specifications



Operation: 5in Touch Panel Power Requirement: AC100-240V : 50-60HZ
Software : DS Slicer, Chitubox, lychee 3d Printing Speed: Up to 90mm/hr
Connectivity: USB | Ethernet | WiFi Rated Power: 180W
Technology: 9.3” 4K Mono-LCD Machine size: 33 x 29 x 47 cm
Light-source: LCD Print size: 19.66 x 12.03 x 20 cm
XY Resolution: 52 µm Material: 405nm UV Resin
Layer Thickness: 0.01-0.30 mm Net Weight: 17.2 kg

Sonic XL 4K PLUS Print Settings

Try our UNICAL™ Calibration Model

If you’re trying Monocure 3D Resin for the first time or have just got a new printer, you’ll need to tweak your slicer settings to ensure perfect synergy between our resin and your printer. The most efficient way to achieve this is by using a Calibration Model. These small, intricate models are quick to print. To calibrate your printer using the UNICAL™ Download the STL model here and for step-by-step instructions on how to use the UNICAL™ head to our 3D Calibration Model Page.
