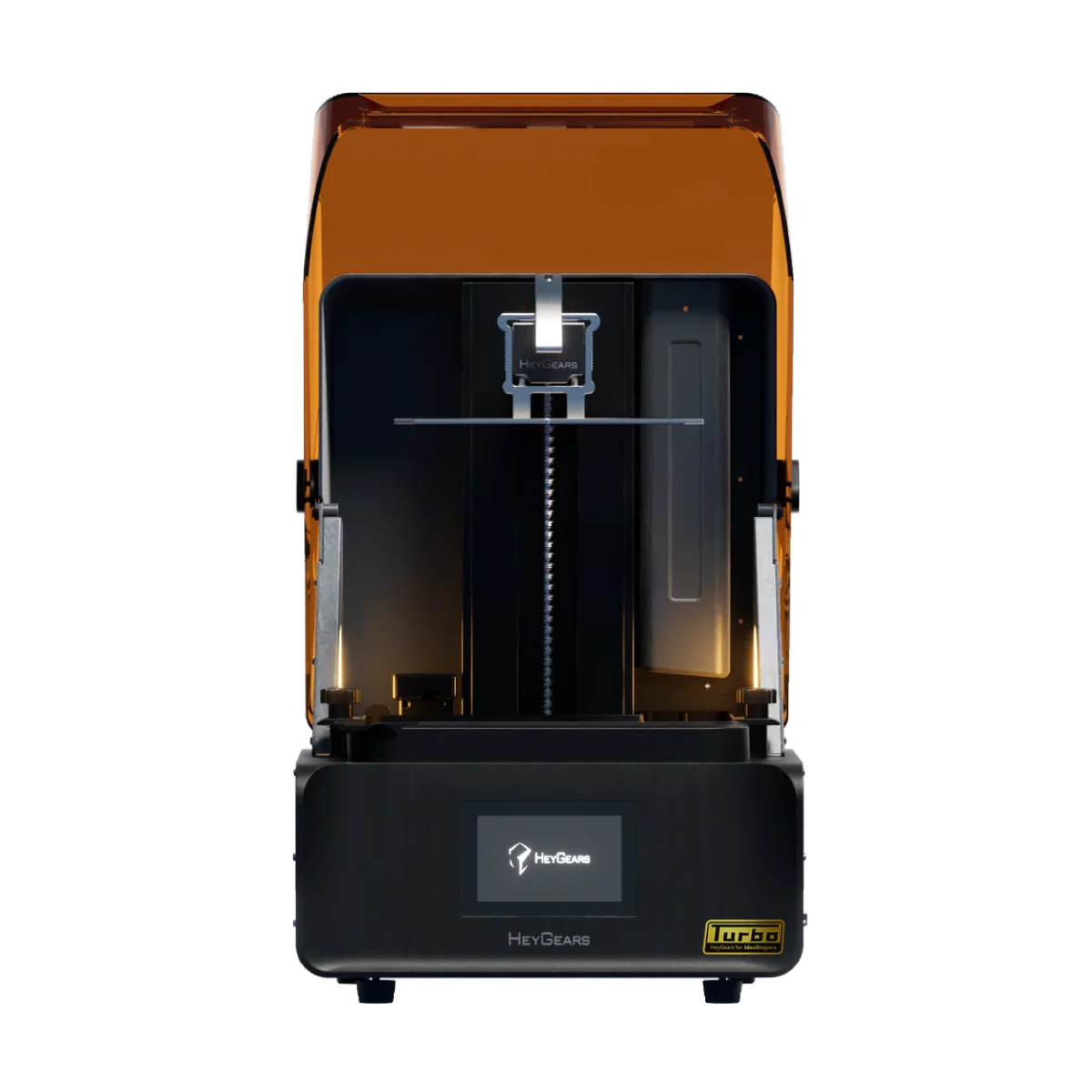

The HeyGears UltraCraft Reflex RS Turbo is a top-tier resin 3D printer tailored for professionals demanding high precision, speed, and reliability. Its standout features include a 10.3″ 8K amber LCD screen with a high contrast ratio for crisp detail, adaptive Z-axis compensation, force monitoring sensors, and a dynamic motion algorithm that boosts print efficiency. Users benefit from automated pre-processing, optional resin tank heating, and compatibility with advanced HeyGears resins. Overall, the RS Turbo delivers exceptional print quality and consistency, making it ideal for detailed prototyping, dental, and design applications.

Learn More

UltraCraft Reflex RS Turbo Specifications



Printing Monitoring: Force Value Monitoring Accuracy: ±15 μm
Software : HeyGears Blueprint Power Consumption: 180 W
Connectivity: USB, WiFi, LAN Rated Power: 100–240 V~ 50/60 Hz
Technology: 10.3-inch 8K Machine size: 380 × 360 × 584 mm
Light-source: LCD (MSLA) Print size: 192 x 121 x 220 mm
XY Resolution: 29.7 μm Material: 405 nm resin
Layer Thickness: 30–100 μm Net Weight: 20 kg

UltraCraft Reflex RS Turbo Print Settings

Important Information About This Printer

Unfortunately, this printer operates on a closed material system, which means it is designed to only accept resins supplied by the manufacturer. At this time, we are unable to provide recommended settings for third-party resins, including those from Monocure3D.

Please note:

  • Using resins not approved by the manufacturer may void your warranty.
  • Always check directly with the manufacturer to confirm which resins are validated for use with this printer.
  • Closed systems can limit your flexibility, often locking you into more expensive materials that may not be ideally suited to your application or budget.
  • In the event of international shipping delays or supply issues, sourcing manufacturer-only resins can become difficult and costly.

We recommend considering open system printers, which allow you to:

  • Use a wide range of resins from various suppliers
  • Customise settings for specific materials and applications
  • Maintain better control over your print quality, cost, and availability

Before purchasing a closed-system printer, we encourage you to research alternatives that offer greater flexibility and long-term value.

Try our UNICAL™ Calibration Model

If you’re trying Monocure 3D Resin for the first time or have just got a new printer, you’ll need to tweak your slicer settings to ensure perfect synergy between our resin and your printer. The most efficient way to achieve this is by using a Calibration Model. These small, intricate models are quick to print. To calibrate your printer using the UNICAL™ Download the STL model here and for step-by-step instructions on how to use the UNICAL™ head to our 3D Calibration Model Page.
